FYT-5631BUHR-21 - Foryard

Description: Display: LED; 7-segment; 14.2mm; 0.56"; No.char: 3; red; 30÷60mcd

Download FYT-5631BUHR-21 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this FYT-5631BUHR-21 model

Email notifications will be applied after download.

Send part feedback

Symbol

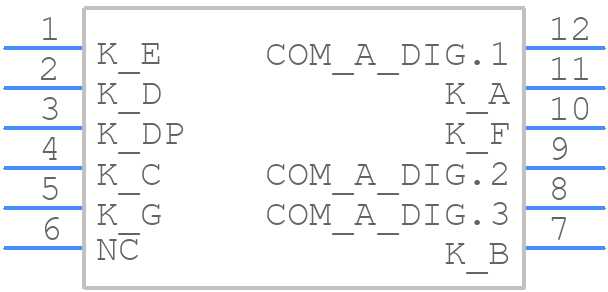

FYT-5631BUHR-21 - Foryard - PCB symbol

PCB Footprints

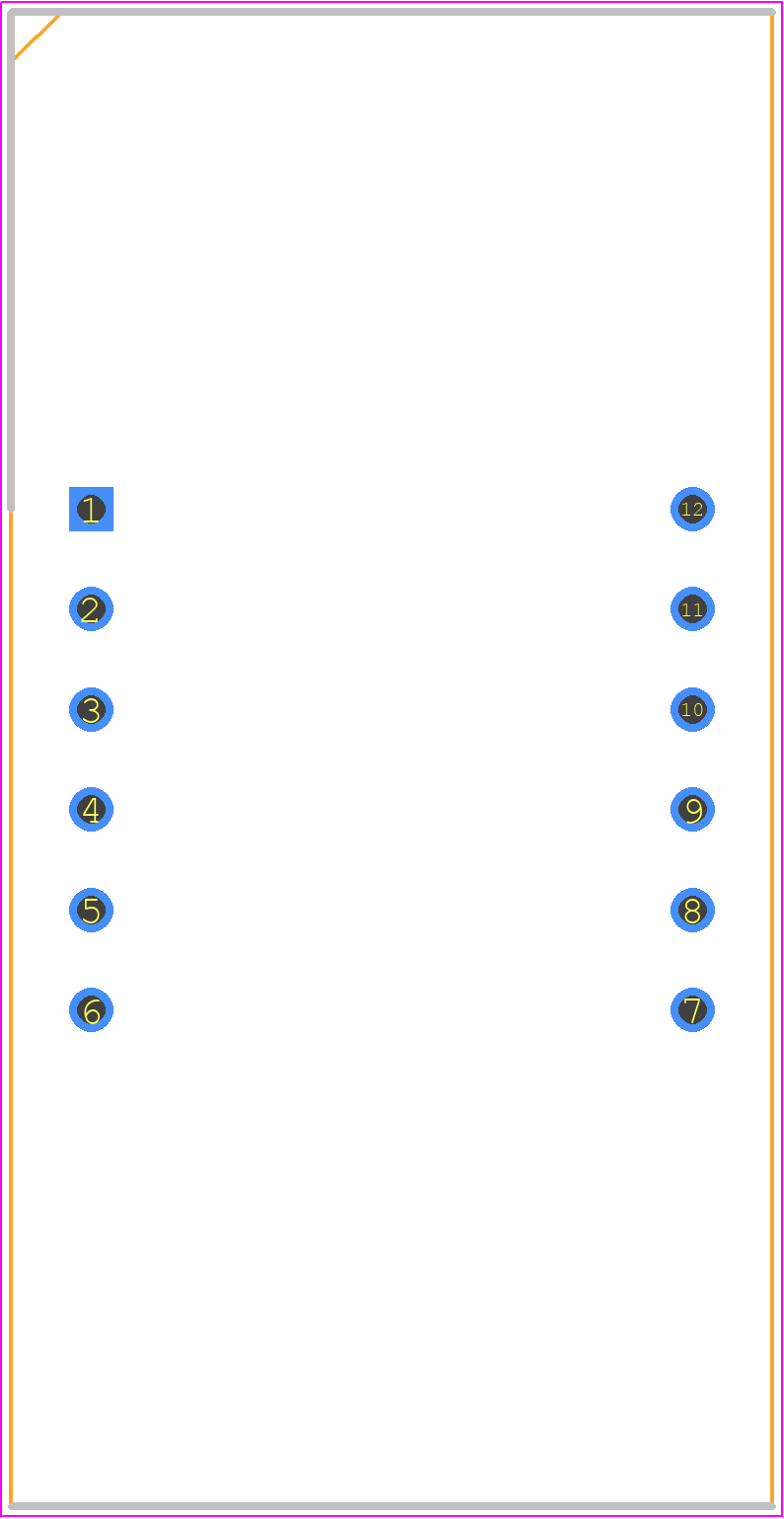

FYT-5631BUHR-21 - Foryard PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12-Pin DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for FYT-5631BUHR-21
Part Number FYT-5631BUHR-21
Manufacturer Foryard
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 12-Pin DIP
Released Date Jan 8, 2024
Last Modified Date Jan 8, 2024 2:47 PM UTC
Pinout / Pin List Click Here (Member Only)

FYT-5631BUHR-21 Details

Manufacturer Part Number:
FYT-5631BUHR-21
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
Foryard
Color:
ULTRA HIGH RED
Color@Wavelength:
Orange-Red
Configuration:
COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display Height:
13.2 mm
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2.5 V
Luminous Intensity-Min:
0.02 cd
Luminous Intensity-Nom:
35.0 mcd
Number of Characters:
3
Number of Functions:
3
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Packing Method:
FOAM
Peak Wavelength:
640 nm

FYT-5631BUHR-21 Frequently Asked Questions (FAQs)

The recommended storage temperature for FYT-5631BUHR-21 is -40°C to 100°C.
Yes, the FYT-5631BUHR-21 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
The typical operating current for the FYT-5631BUHR-21 is 20mA, with a maximum current rating of 30mA.
Yes, the FYT-5631BUHR-21 has built-in ESD protection, with a human body model (HBM) rating of 2kV and an IEC61000-4-2 rating of 4kV.
The FYT-5631BUHR-21 has an MSL rating of 3, indicating that it can withstand exposure to moisture for up to 168 hours.
