FZT696BTA - Diodes Incorporated

Description: Diodes Inc FZT696BTA NPN Darlington Transistor, 0.5 A 180 V HFE:150, 4-Pin SOT-223

Download FZT696BTA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

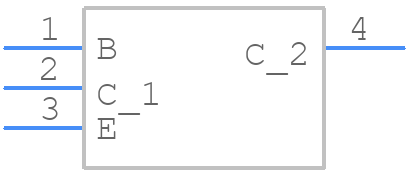

FZT696BTA - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

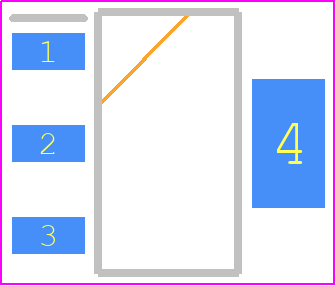

FZT696BTA - Diodes Incorporated PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - AP02001 SOT223_1
click to zoom
3D Models
FZT696BTA - Diodes Incorporated - 3D model - SOT223 (3-Pin) - AP02001 SOT223_1
click to zoom

FZT696BTA Details

  • Manufacturer Part Number:

    FZT696BTA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    0.5 A

  • Collector-Emitter Voltage-Max:

    180 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    150

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    2 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    70 MHz

FZT696BTA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FZT696BTA is -55°C to 150°C.
  • Yes, the FZT696BTA is suitable for high-frequency switching applications up to 100 kHz due to its low capacitance and fast switching times.
  • To ensure proper biasing, follow the recommended biasing circuit and voltage levels outlined in the datasheet, and consider using a voltage regulator to maintain a stable voltage supply.
  • For optimal thermal performance, use a PCB layout with a large copper area for heat dissipation, and consider using thermal vias and a heat sink if necessary. Follow the recommended land pattern and thermal design guidelines in the datasheet.
  • While the FZT696BTA is primarily designed for switching applications, it can be used in linear amplifier applications with careful consideration of its linearity, gain, and thermal performance. However, it may not be the optimal choice for high-gain or high-linearity applications.
