FZT789ATA - Diodes Incorporated

Description: Diodes Inc FZT789ATA PNP Bipolar Transistor, 3 A, 25 V SOT-223

Download FZT789ATA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

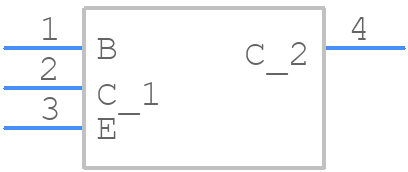

Symbol
FZT789ATA - Diodes Incorporated - PCB symbol
click to zoom

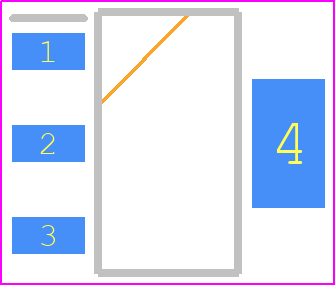

PCB Footprints
FZT789ATA - Diodes Incorporated PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - FZT789ATA
click to zoom
3D Models
FZT789ATA - Diodes Incorporated - 3D model - SOT223 (3-Pin) - FZT789ATA
click to zoom

FZT789ATA Details

  • Manufacturer Part Number:

    FZT789ATA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    3 A

  • Collector-Emitter Voltage-Max:

    25 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    300

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    100 MHz

FZT789ATA Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to improve heat dissipation.
  • The FZT789ATA requires a bias voltage of 5V to 15V. Ensure the input voltage is within this range and the output voltage is properly terminated to prevent oscillations. A 10uF capacitor between the bias pin and ground is recommended to filter out noise.
  • The maximum power dissipation for the FZT789ATA is 1.5W. Ensure the device is properly heat-sinked and the ambient temperature is within the recommended operating range to prevent overheating.
  • Handle the device by the body or use an anti-static wrist strap to prevent ESD damage. Ensure the PCB is designed with ESD protection in mind, including the use of TVS diodes or ESD protection arrays.
  • Store the FZT789ATA in a dry, cool place with a temperature range of -40°C to 125°C and humidity below 60%. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures.
