A good PCB layout for the FZT851QTA should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device. A minimum of 2oz copper thickness is recommended. Refer to the Diodes Incorporated application note AN-114 for more details.
To ensure proper biasing, follow the recommended voltage and current ratings in the datasheet. For the FZT851QTA, the recommended bias voltage is 2.5V to 5.5V, and the recommended bias current is 1mA to 10mA. Additionally, ensure the input signal is within the specified common-mode range.
The FZT851QTA has built-in ESD protection diodes on the input pins, which can withstand up to 2kV of ESD voltage. To prevent latch-up, ensure the device is powered up and down slowly, and avoid voltage spikes or transients on the power supply lines.
The FZT851QTA is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management, such as heat sinking and airflow, to maintain a safe operating temperature.
To troubleshoot issues with the FZT851QTA, first verify the power supply voltage and input signal levels are within the specified ranges. Check for proper PCB layout and decoupling. Use an oscilloscope to inspect the output waveform and input signal. If issues persist, consult the Diodes Incorporated application notes and technical support resources.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FZT851QTA Overview

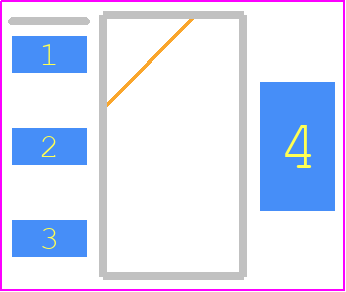

Use the download button to access the FZT851QTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FZT85,
or try a keyword search, such as Power Bipolar Transistors
