G-NICO-023 - TE Connectivity

Description: TSYS01-FAMILY Digital Temperature Sensors

Download G-NICO-023 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

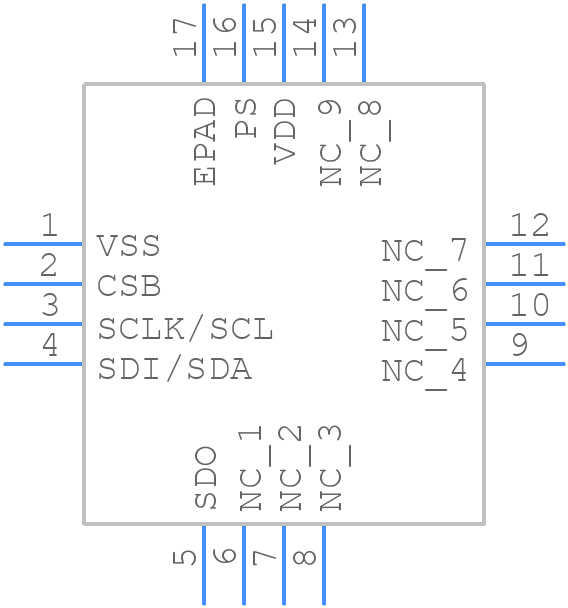

G-NICO-023 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
G-NICO-023 - TE Connectivity PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TSYS01
click to zoom
3D Models
G-NICO-023 - TE Connectivity - 3D model - Quad Flat No-Lead - TSYS01
click to zoom

G-NICO-023 Details

  • Manufacturer Part Number:

    G-NICO-023

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    22 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.2

  • Body Breadth:

    4 mm

  • Body Height:

    0.85 mm

  • Body Length or Diameter:

    4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    0.0125 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C, SPI

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Surface Mount:

    YES

G-NICO-023 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw terminals.
  • Yes, the G-NICO-023 is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1, Class B vibration standard.
  • The operating temperature range for the G-NICO-023 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the G-NICO-023 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum current rating for the G-NICO-023 is 3 A per contact.
