G12 - XP POWER

Description: Isolated DC/DC Converters - Through Hole SINGLE O/P, DC-HV DC PCB MOUNT, 1.5W, 1200V

Download G12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

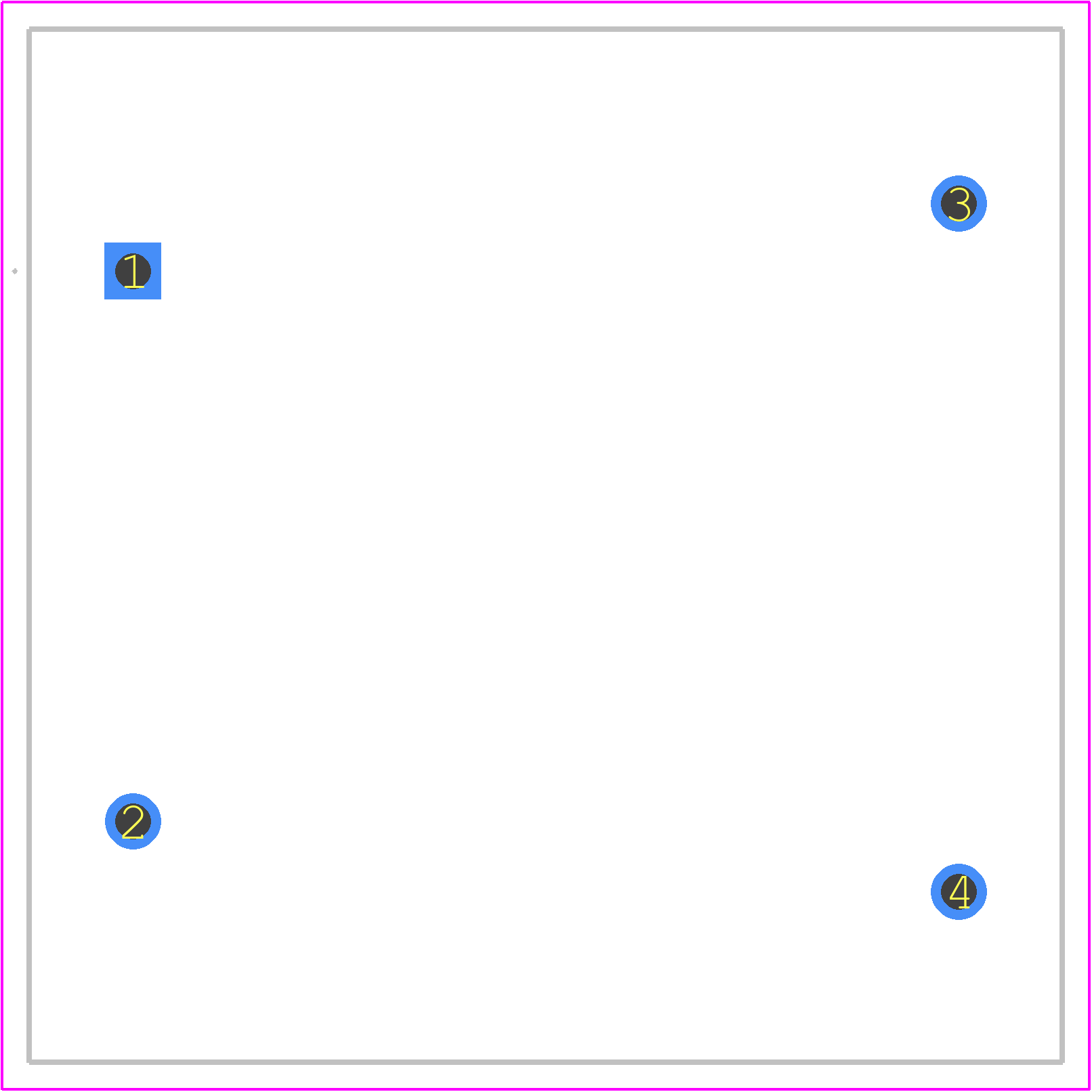

G12 - XP POWER PCB footprint - Other - Other - 38.1 x 38.1 x 16.0mm
click to zoom
3D Models
G12 - XP POWER  - 3D model - Other - 38.1 x 38.1 x 16.0mm
click to zoom

G12 Details

  • Manufacturer Part Number:

    G12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

G12 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the G12 is 0.1uF to 10uF, depending on the specific model and output voltage. It's recommended to consult the application notes or contact XP Power support for more information.
  • The G12 has a standard operating temperature range of -40°C to 85°C. However, some models have a higher temperature rating, up to 100°C. It's essential to check the specific datasheet or consult with XP Power support for the exact temperature rating of the model you're using.
  • The G12 meets various safety certifications, including UL, EN, and IEC. To ensure compliance, verify the specific certification marks on the device and consult the datasheet or XP Power support for more information. Additionally, consider the application's specific requirements and any necessary testing or certification.
  • To minimize EMI and noise, follow the recommended layout and placement guidelines provided in the application notes or datasheet. Generally, keep the input and output tracks separate, use a solid ground plane, and place the G12 as close as possible to the load. Additionally, consider using shielding and filtering components as needed.
  • Yes, the G12 can be used in a redundant or parallel configuration to achieve higher power ratings or improve reliability. However, it's crucial to follow the recommended guidelines and application notes to ensure proper operation and avoid potential issues.
