G125-FS12605F1R - Harwin

Description: Gecko-SL: 13+13 Pos Receptacle DIL Straight SMT Hex Socket Screw-Lok (T+R)

Download G125-FS12605F1R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

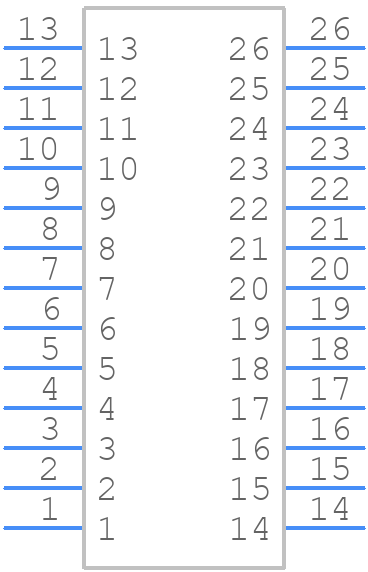

G125-FS12605F1R - Harwin - PCB symbol
click to zoom
PCB Footprints

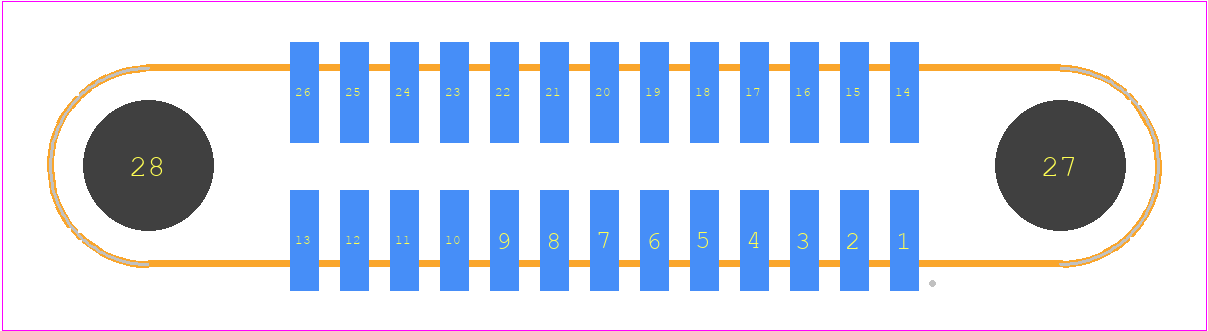

G125-FS12605F1R - Harwin PCB footprint - Other - Other - G125-FS12605F1R
click to zoom
3D Models
G125-FS12605F1R - Harwin - 3D model - Other - G125-FS12605F1R
click to zoom

G125-FS12605F1R Details

  • Manufacturer Part Number:

    G125-FS12605F1R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    8.3

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

G125-FS12605F1R Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the G125-FS12605F1R is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat 2.
  • Yes, the G125-FS12605F1R is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH at 40°C.
  • The G125-FS12605F1R has a mating cycle life of 500 cycles, as specified in the Harwin datasheet.
  • Yes, the G125-FS12605F1R can be used with PCB thicknesses ranging from 1.2mm to 2.4mm, but the recommended PCB thickness is 1.6mm for optimal performance.
