G125-FV11605F1P - Harwin

Description: Gecko-SL: 8+8 Pos Receptacle DIL Straight 3mm THT Connector Hex Socket Screw-Lok

Download G125-FV11605F1P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
G125-FV11605F1P - Harwin - PCB symbol
click to zoom
PCB Footprints

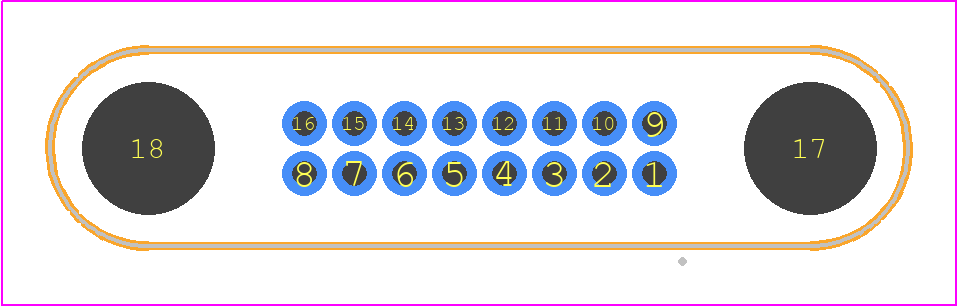

G125-FV11605F1P - Harwin PCB footprint - Other - Other - G125-FV11605F1P-2
click to zoom
3D Models
G125-FV11605F1P - Harwin - 3D model - Other - G125-FV11605F1P-2
click to zoom

G125-FV11605F1P Details

  • Manufacturer Part Number:

    G125-FV11605F1P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

G125-FV11605F1P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the G125-FV11605F1P is designed to withstand high-vibration environments, but it's recommended to perform additional testing and validation for specific applications.
  • The maximum operating temperature for the G125-FV11605F1P is 125°C, but it's recommended to derate the connector's performance at higher temperatures.
  • The G125-FV11605F1P is designed to be resistant to harsh environments, but it's recommended to perform additional testing and validation for specific applications, and to consider using additional protective measures such as conformal coatings or sealing.
  • The G125-FV11605F1P is designed to be compatible with other connectors that meet the IEC 61076-4-116 standard, but compatibility with connectors from other manufacturers should be verified through testing and validation.
