G125-FV15005F1P - Harwin

Description: Gecko-SL: 25+25 Pos Receptacle DIL Straight 3mm THT Connector Hex Socket Screw-Lok

Download G125-FV15005F1P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

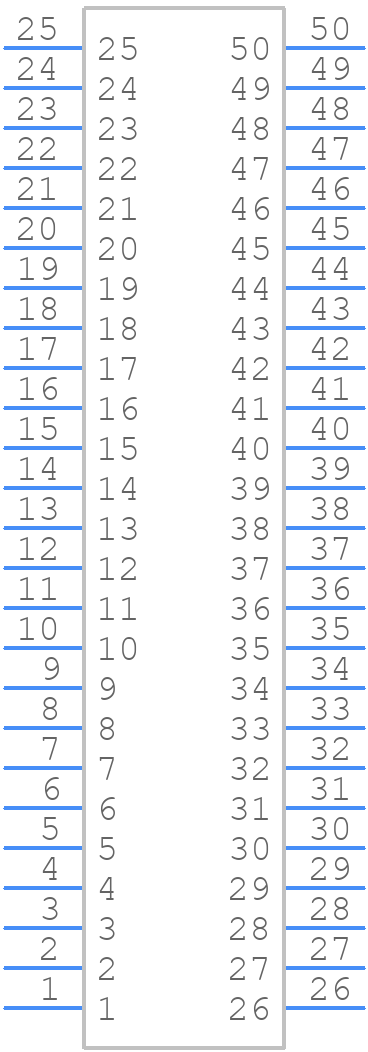

Symbol
G125-FV15005F1P - Harwin - PCB symbol
click to zoom

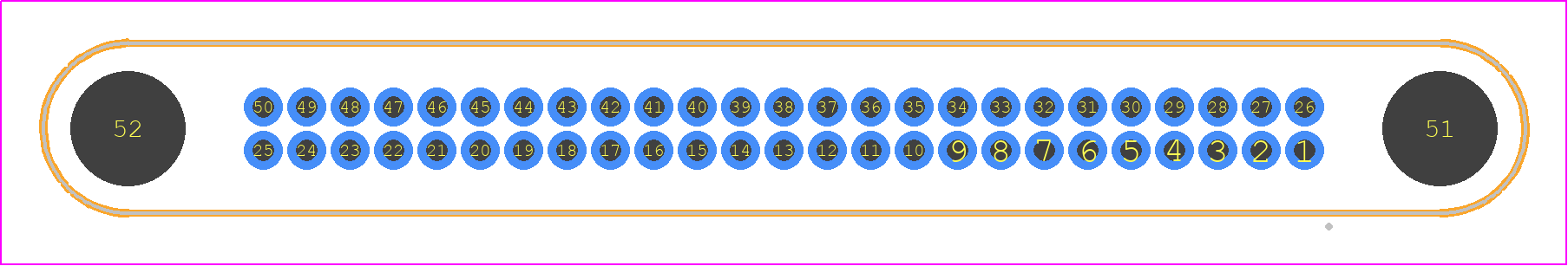

PCB Footprints
G125-FV15005F1P - Harwin PCB footprint - Other - Other - G125-FV15005F1P
click to zoom
3D Models
G125-FV15005F1P - Harwin - 3D model - Other - G125-FV15005F1P
click to zoom

G125-FV15005F1P Details

  • Manufacturer Part Number:

    G125-FV15005F1P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Body Breadth:

    0.248 inch

  • Body Depth:

    0.272 inch

  • Body Length:

    1.681 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE4T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.049 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

G125-FV15005F1P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the G125-FV15005F1P is designed to withstand high-vibration environments, but it's recommended to perform additional testing and validation for specific applications.
  • The maximum operating temperature for the G125-FV15005F1P is 125°C, but it's recommended to derate the current and voltage ratings at higher temperatures.
  • The G125-FV15005F1P has a nickel-plated copper alloy contact material, which provides some resistance to corrosion, but it's not recommended for use in direct exposure to saltwater or harsh chemicals without additional protection or coatings.
  • The G125-FV15005F1P is designed for signal integrity and has a bandwidth of up to 10 Gbps, making it suitable for high-speed data transmission applications, but it's recommended to perform signal integrity analysis and testing for specific applications.
