The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin datasheet. However, it's essential to consult the specific application requirements and environmental conditions to determine the optimal torque value.
Yes, the G125-FV15005L0P is designed to withstand vibrations and shocks. Harwin's datasheet specifies that it meets the IEC 61373 Cat 2 standard for vibration and shock resistance. However, it's crucial to consult the specific vibration and shock requirements of your application to ensure the connector meets those demands.
The operating temperature range for the G125-FV15005L0P is -40°C to +125°C, as specified in the Harwin datasheet. However, it's essential to consider the temperature range of the specific application and ensure the connector is suitable for the operating conditions.
The G125-FV15005L0P is designed to be resistant to harsh environments, including high humidity and exposure to chemicals. However, it's crucial to consult the specific environmental requirements of your application and ensure the connector meets those demands. Harwin also offers additional coatings and treatments to enhance the connector's environmental resistance.
The G125-FV15005L0P is designed for high-reliability applications, but its data transmission speed is limited to 1 Gb/s. If you require higher data transmission speeds, you may need to consider alternative connectors specifically designed for high-speed applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
G125-FV15005L0P Overview

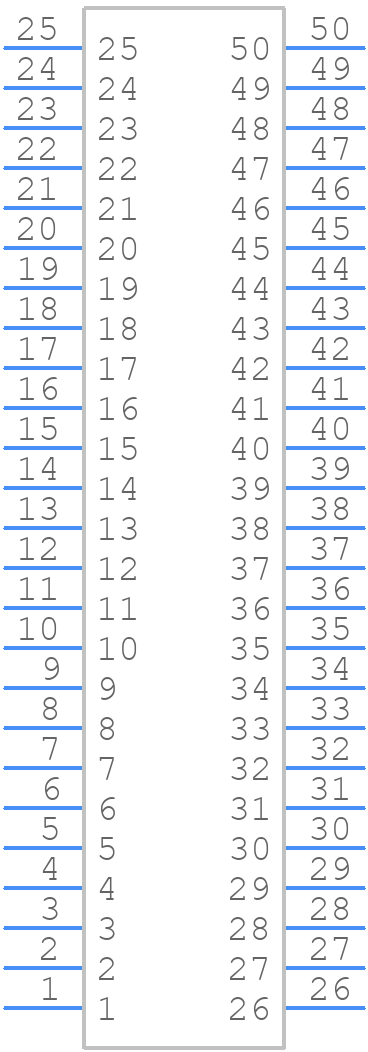

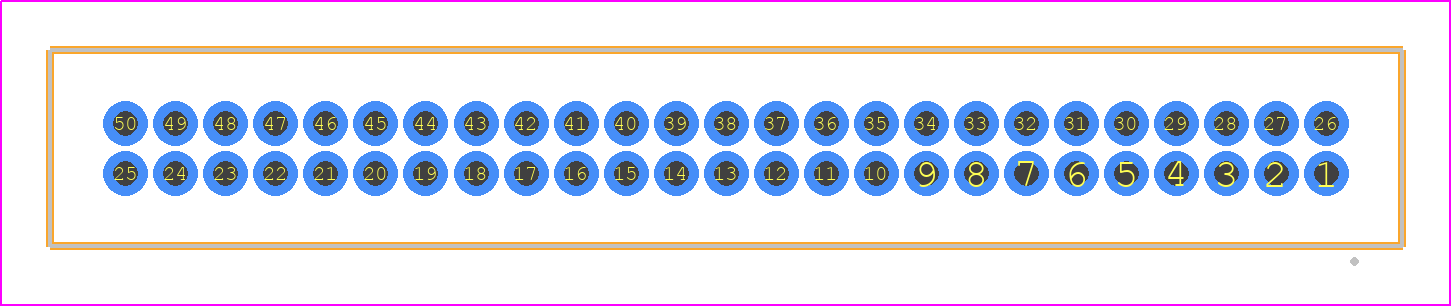

Use the download button to access the G125-FV15005L0P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G125-,
or try a keyword search, such as Headers and Edge Type Connectors
