G125-MH12605L5P - Harwin

Description: Gecko Latch: 13+13 Pos Plug DIL Right-Angle 3.2mm THT Connector no Latch THT Hold-Down

Download G125-MH12605L5P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

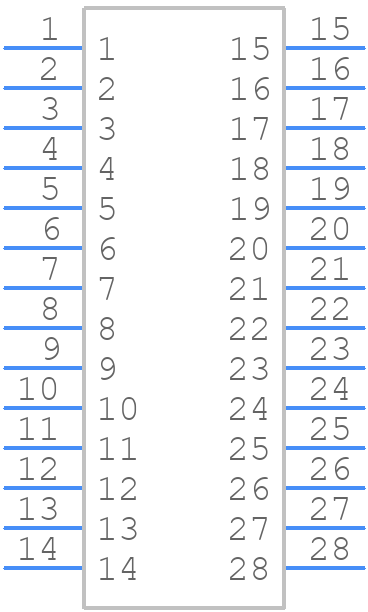

Symbol
G125-MH12605L5P - Harwin - PCB symbol
click to zoom

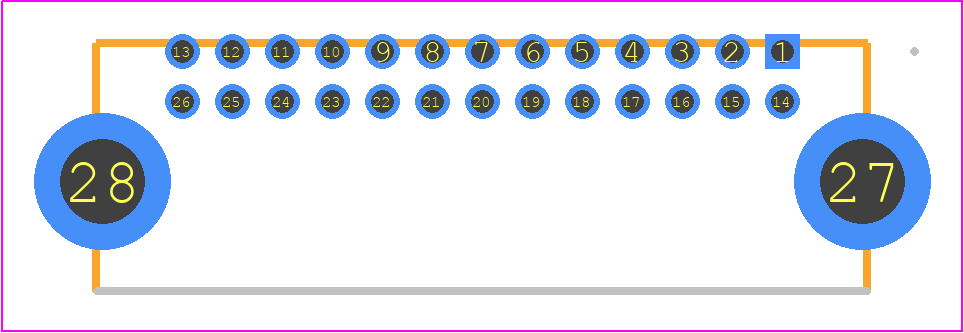

PCB Footprints
G125-MH12605L5P - Harwin PCB footprint - Other - Other - G125-MH12605L5P
click to zoom
3D Models
G125-MH12605L5P - Harwin - 3D model - Other - G125-MH12605L5P
click to zoom

G125-MH12605L5P Details

  • Manufacturer Part Number:

    G125-MH12605L5P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

G125-MH12605L5P Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm (0.37 lbf.in to 1.06 lbf.in) for the M2.5 screw threads.
  • Yes, the G125-MH12605L5P is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the G125-MH12605L5P is compatible with lead-free soldering processes, with a maximum soldering temperature of 260°C (500°F) for 10 seconds.
  • The operating temperature range of the G125-MH12605L5P is -40°C to 125°C (-40°F to 257°F).
  • The G125-MH12605L5P has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G125-MH12605L5P Overview

Use the download button to access the G125-MH12605L5P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G125-, or try a keyword search, such as Headers and Edge Type Connectors
