The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm, as specified in the Harwin datasheet. However, it's essential to consult the specific application requirements and environmental conditions to determine the optimal torque value.
Yes, the G125-MH15005L5P connector is designed to withstand vibrations and shocks. It meets the IEC 61373 Cat 2 standard for vibration and shock resistance. However, it's crucial to ensure proper mounting and screw locking to maintain the connector's integrity in high-vibration environments.
The G125-MH15005L5P connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to consult the datasheet and application notes for specific guidance on environmental considerations, such as moisture protection and thermal management.
The G125-MH15005L5P connector is designed to be compatible with other connectors that meet the same industry standards (e.g., MIL-DTL-83513). However, it's recommended to verify compatibility and perform testing before using connectors from different manufacturers to ensure reliable connections and avoid potential issues.
Harwin recommends using a soft, dry brush or a lint-free cloth to remove any debris or contaminants from the connector. Avoid using harsh chemicals, abrasive materials, or excessive force, which can damage the connector's contacts or insulators.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
G125-MH15005L5P Overview

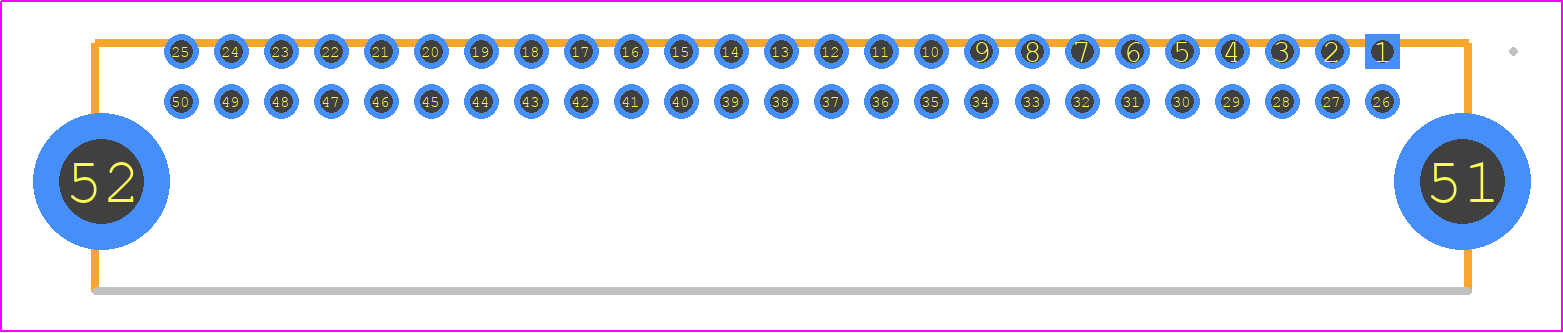

Use the download button to access the G125-MH15005L5P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G125-,
or try a keyword search, such as Headers and Edge Type Connectors
