G125-MV15005M1R - Harwin

Description: Gecko-SL: 25+25 Pos Plug DIL Straight 3mm THT Connector Screw-Lok (T+R)

Download G125-MV15005M1R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
G125-MV15005M1R - Harwin - PCB symbol
click to zoom
PCB Footprints

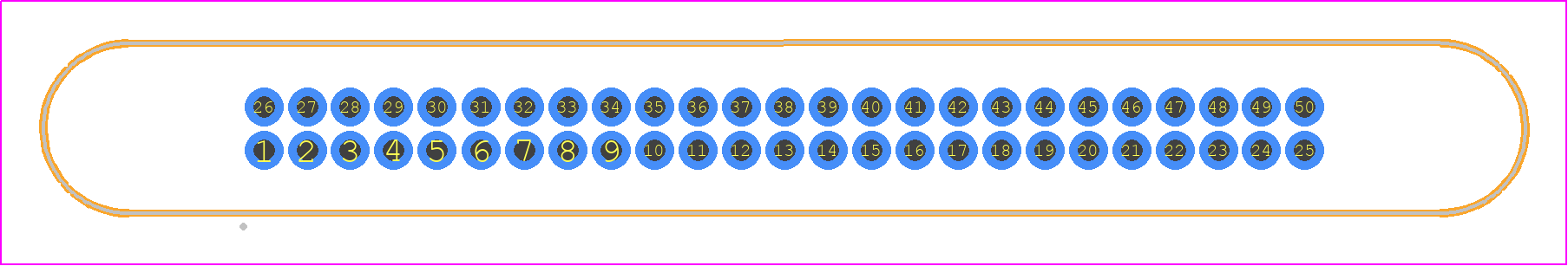

G125-MV15005M1R - Harwin PCB footprint - Other - Other - G125-MV15005M1R
click to zoom
3D Models
G125-MV15005M1R - Harwin - 3D model - Other - G125-MV15005M1R
click to zoom

G125-MV15005M1R Details

  • Manufacturer Part Number:

    G125-MV15005M1R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    PHOSPHOR BRONZE

  • JESD-609 Code:

    e4

G125-MV15005M1R Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the G125-MV15005M1R is designed to meet the requirements of high-vibration applications, such as those found in aerospace, defense, and industrial environments.
  • The mating cycle life of the G125-MV15005M1R is 500 cycles minimum, as specified in the datasheet.
  • Yes, the G125-MV15005M1R is designed to operate in harsh environments, with a temperature range of -55°C to +125°C and humidity resistance to IEC 60529 IP67.
  • Yes, the G125-MV15005M1R can be used with PCB thicknesses from 1.2mm to 2.4mm, but the recommended thickness is 1.6mm for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G125-MV15005M1R Overview

Use the download button to access the G125-MV15005M1R schematic symbol, PCB footprint, and 3D model.
