G125-MV22005L2P - Harwin

Description: Gecko Latch: 10+10 Pos Plug DIL Straight 4.5mm THT Connector Latch THT Hold-Down

Download G125-MV22005L2P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
G125-MV22005L2P - Harwin - PCB symbol
click to zoom
PCB Footprints

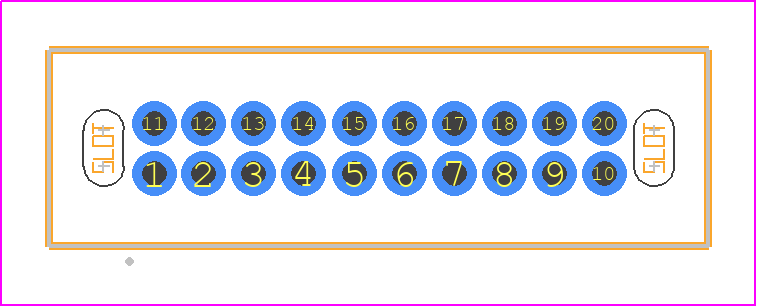

G125-MV22005L2P - Harwin PCB footprint - Other - Other - G125-MV22005L2P
click to zoom
3D Models
G125-MV22005L2P - Harwin - 3D model - Other - G125-MV22005L2P
click to zoom

G125-MV22005L2P Details

  • Manufacturer Part Number:

    G125-MV22005L2P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

G125-MV22005L2P Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the G125-MV22005L2P is designed to meet the requirements of high-vibration applications, such as those found in aerospace, defense, and industrial environments.
  • The mating cycle life of the G125-MV22005L2P is 500 cycles, as specified in the datasheet.
  • Yes, the G125-MV22005L2P is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity resistance to 95% RH.
  • Yes, the G125-MV22005L2P is designed for high-speed signal transmission, with a bandwidth of up to 10 Gbps.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G125-MV22005L2P Overview

Use the download button to access the G125-MV22005L2P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G125-, or try a keyword search, such as Headers and Edge Type Connectors
