G12JHF - NKK Switches

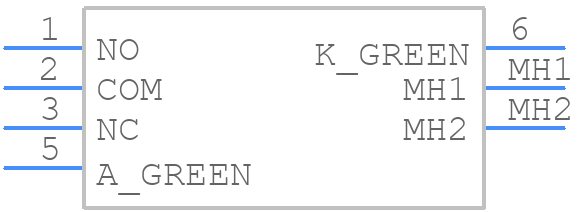

G12JHF Details

• Manufacturer Part Number:

  G12JHF

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  NKK Switches

• YTEOL:

  8.5

• Actuator Angle:

  28 deg

• Actuator Length:

  0.15 inch

• Actuator Material:

  POLYAMIDE

• Actuator Type:

  TOGGLE

• Body Breadth:

  4.9 mm

• Body Height:

  8.62 mm

• Body Length or Diameter:

  7.8 mm

• Bushing Diameter:

  0.157 inch

• Bushing Length:

  0.063 inch

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD

• Contact (AC) Max Rating R Load:

  .014A@28VAC

• Contact Current(AC)-Max:

  0.014 A

• Contact Current(DC)-Max:

  0.014 A

• Contact (DC) Max Power Rating R Load:

  0.4VA@28VDC

• Contact (DC) Max Rating R Load:

  .014A@28VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.08 mΩ

• Contact Voltage(AC)-Max:

  28 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  PHOSPHOR BRONZE

• End Contact Plating:

  GOLD

• Illumination:

  GREEN LED

• Insulation Resistance:

  500000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  55 °C

• Operating Temperature-Min:

  -25 °C

• PCB Hole Count:

  8

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Length:

  0.102 inch

• Terminal Material:

  PHOSPHOR BRONZE

• Termination Type:

  SOLDER
