G2R1000MT33J - GeneSiC Semiconductor

Description: N-Channel 3300V 4A (Tc) 74W (Tc) Surface Mount TO-263-7

Download G2R1000MT33J Model

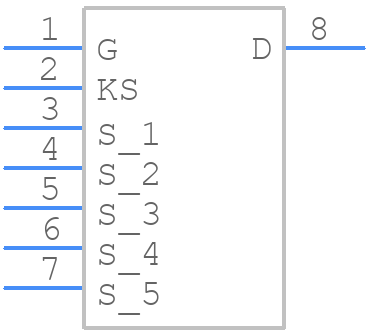

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

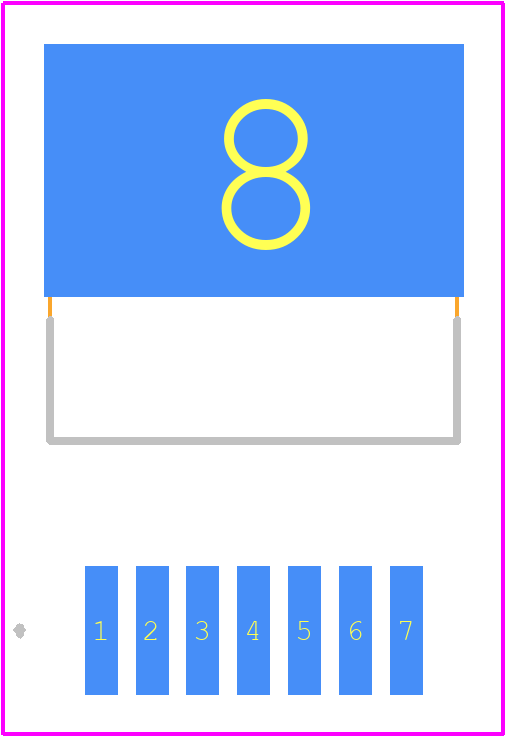

PCB Footprints
G2R1000MT33J - GeneSiC Semiconductor PCB footprint - Other - Other - TO-263-7_4.56H
click to zoom
3D Models
G2R1000MT33J - GeneSiC Semiconductor  - 3D model - Other - TO-263-7_4.56H
click to zoom

G2R1000MT33J Details

  • Manufacturer Part Number:

    G2R1000MT33J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    GeneSic Semiconductor Inc

  • YTEOL:

    7

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    3300 V

  • Drain Current-Max (ID):

    4 A

  • Drain-source On Resistance-Max:

    1.2 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    2.4 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    74 W

  • Pulsed Drain Current-Max (IDM):

    8 A

  • Reference Standard:

    IEC-60747-8-4

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

G2R1000MT33J Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the G2R1000MT33J is -55°C to 175°C.
  • To ensure reliability, follow the recommended PCB layout guidelines, use a suitable thermal management system, and ensure proper cooling to prevent overheating.
  • The recommended gate drive voltage for the G2R1000MT33J is between 10V and 15V, with a maximum gate-source voltage of ±20V.
  • Yes, the G2R1000MT33J can be used in a parallel configuration, but it's essential to ensure that the devices are properly matched and the gate drive signals are synchronized to prevent uneven current sharing.
  • Use a suitable overvoltage protection (OVP) circuit and overcurrent protection (OCP) mechanism, such as a fuse or a current sense resistor, to prevent damage to the device.
