G2RL-2A-DC24 - Omron Electronics

Description: General Purpose Relays DPST-NO 24VDC ClassF GP Type Flux

Download G2RL-2A-DC24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

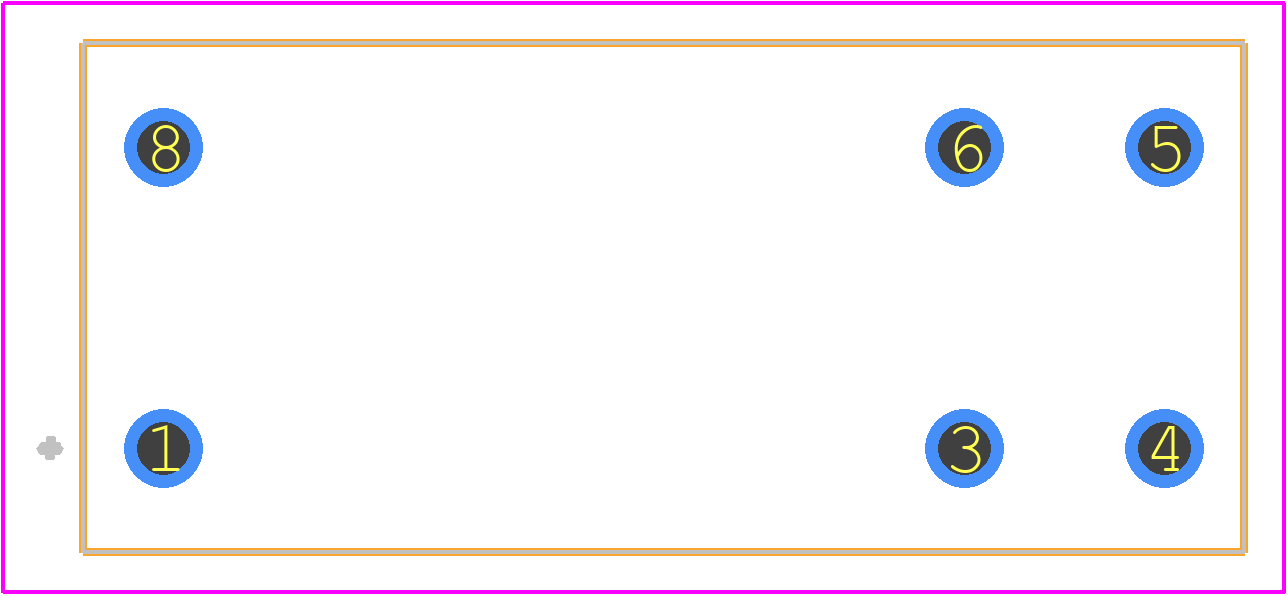

G2RL-2A-DC24 - Omron Electronics PCB footprint - Other - Other - G2RL-2A-DC24-1
click to zoom
3D Models
G2RL-2A-DC24 - Omron Electronics  - 3D model - Other - G2RL-2A-DC24-1
click to zoom

G2RL-2A-DC24 Details

  • Manufacturer Part Number:

    G2RL-2A-DC24

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Unknown

  • Manufacturer:

    OMRON Corporation

  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Current(DC)-Max:

    0.017 A

  • Coil Operate Voltage(DC):

    16.8 V

  • Coil Power:

    400 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    1440 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    8A@440VAC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact (DC) Max Rating R Load:

    8A@300VDC

  • Contact Voltage(AC)-Max:

    440 V

  • Contact Voltage(DC)-Max:

    300 V

  • Contact/Output Supply Type:

    AC/DC

  • Manufacturer Series:

    G2RL

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT MOUNT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    29mm x 12.7mm x 15.7mm

  • Reference Standard:

    CSA; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    5 ms

  • Surface Mount:

    NO

  • Terminal Finish:

    NOT SPECIFIED

  • Termination Type:

    SOLDER

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G2RL-2A-DC24 Overview

Use the download button to access the G2RL-2A-DC24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G2RL-, or try a keyword search, such as Power/Signal Relays
