G3R350MT12J footprint, schematic symbol and 3D model by GeneSiC Semiconductor

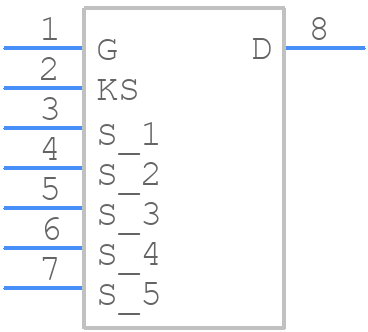

Symbol

click to zoom

PCB Footprints

G3R350MT12J - GeneSiC Semiconductor PCB footprint - Other - Other - G3R350MT12J-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for G3R350MT12J
Part Number G3R350MT12J
Manufacturer GeneSiC Semiconductor
Pin Count 8
Part Category Resistor
Package Category Other
Footprint Name Other - G3R350MT12J-2
Released Date Apr 26, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

G3R350MT12J Details

Manufacturer Part Number:
G3R350MT12J
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Country Of Origin:
USA
ECCN Code:
EAR99
Manufacturer:
GeneSic Semiconductor Inc
Avalanche Energy Rating (Eas):
43 mJ
Case Connection:
DRAIN
Configuration:
SINGLE WITH BUILT-IN DIODE AND KELVIN SENSOR
DS Breakdown Voltage-Min:
1200 V
Drain Current-Max (ID):
10 A
Drain-source On Resistance-Max:
0.395 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
0.8 pF
JEDEC-95 Code:
TO-263
JESD-30 Code:
R-PSSO-G7
Number of Elements:
1
Number of Terminals:
7
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
64 W
Pulsed Drain Current-Max (IDM):
16 A
Reference Standard:
IEC-607478-4
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
SINGLE
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON CARBIDE

G3R350MT12J Frequently Asked Questions (FAQs)

A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. The device should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
Ensure proper heat sinking, use a thermally conductive material for the PCB, and follow the recommended thermal design guidelines. Also, consider derating the device's current rating at high temperatures.
A gate drive voltage of 10-15V and a current of 1-2A is recommended for optimal switching performance. However, the exact values may vary depending on the specific application and PCB layout.
Use a TVS diode or a zener diode for overvoltage protection, and a fuse or a current sense resistor for overcurrent protection. Also, consider using a gate drive circuit with built-in overcurrent protection.
A dead time of 100-200ns is recommended to ensure proper switching and to prevent shoot-through currents. However, the exact value may vary depending on the specific application and PCB layout.

Trust Checks

Community Provided

System Verified

Community Approved

G3R350MT12J Overview

Use the download button to access the G3R350MT12J schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like G3R35, or try a keyword search, such as Power Field-Effect Transistors
