G3R60MT07J - GeneSiC Semiconductor

Description: MOSFET 750V 60mO TO-263-7 G3R SiC MOSFET

Download G3R60MT07J Model

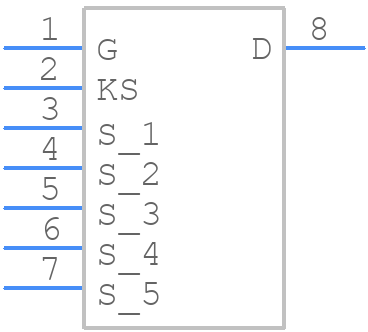

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
G3R60MT07J - GeneSiC Semiconductor PCB footprint - Other - Other - TO-263-7_2023
click to zoom
3D Models
G3R60MT07J - GeneSiC Semiconductor  - 3D model - Other - TO-263-7_2023
click to zoom

G3R60MT07J Details

  • Manufacturer Part Number:

    G3R60MT07J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    GeneSic Semiconductor Inc

G3R60MT07J Frequently Asked Questions (FAQs)

  • GeneSic recommends a 2-layer or 4-layer PCB with a thermal pad connected to a heat sink or a thermal interface material (TIM) to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended for the PCB. Additionally, a thermal via array under the device can help to reduce thermal resistance.
  • To ensure reliable operation, it's essential to follow the recommended operating conditions and thermal management guidelines. Monitor the device's junction temperature (Tj) and ensure it stays within the specified range (typically < 150°C). Implement over-temperature protection (OTP) and over-current protection (OCP) mechanisms to prevent damage from excessive heat or current.
  • GeneSic recommends using a gate driver with a high current capability (> 1A) and a low output impedance (< 1 ohm) to ensure fast switching times. The gate drive circuit should be placed close to the device, and the layout should minimize parasitic inductance and capacitance. A low-ESR capacitor (e.g., ceramic or film capacitor) should be used for decoupling.
  • Follow standard ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Ensure that the device is handled and stored in a static-protective environment. During assembly, use ESD-protected tools and follow the recommended soldering profile to prevent damage.
  • Perform thorough testing and validation of the device, including electrical characterization, thermal performance, and reliability testing. Use industry-standard test equipment and follow the recommended test procedures outlined in the datasheet or application notes. Validate the device's performance under various operating conditions, including temperature, voltage, and current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G3R60MT07J Overview

Use the download button to access the G3R60MT07J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G3R60, or try a keyword search, such as Power Field-Effect Transistors
