G3R75MT12J footprint, schematic symbol and 3D model by GeneSiC Semiconductor

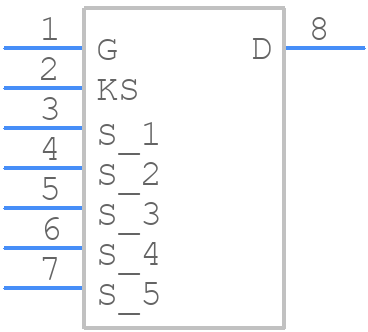

Symbol

click to zoom

PCB Footprints

G3R75MT12J - GeneSiC Semiconductor PCB footprint - Other - Other - TO-263-7_2023-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for G3R75MT12J
Part Number G3R75MT12J
Manufacturer GeneSiC Semiconductor
Pin Count 8
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - TO-263-7_2023-2
Released Date Jun 7, 2023
Last Modified Date Jun 8, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

G3R75MT12J Details

Manufacturer Part Number:
G3R75MT12J
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Country Of Origin:
USA
ECCN Code:
EAR99
Manufacturer:
GeneSic Semiconductor Inc
YTEOL:
7
Avalanche Energy Rating (Eas):
199 mJ
Case Connection:
DRAIN
Configuration:
SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
1200 V
Drain Current-Max (ID):
38 A
Drain-source On Resistance-Max:
0.097 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code:
TO-263
JESD-30 Code:
R-PSSO-G7
Number of Elements:
1
Number of Terminals:
7
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
196 W
Pulsed Drain Current-Max (IDM):
70 A
Reference Standard:
IEC-60747-8-4
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
SINGLE
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON CARBIDE

G3R75MT12J Frequently Asked Questions (FAQs)

A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. The device should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
Ensure proper heat sinking, use a thermally conductive material for the PCB, and follow the recommended thermal design guidelines. Also, consider using a thermal interface material (TIM) between the device and the heat sink.
A gate drive circuit with a high current capability (e.g., 1A or higher) and a fast rise time (e.g., <10ns) is recommended. A gate resistor value between 10Ω to 22Ω is suitable for most applications.
Use a voltage clamp or a transient voltage suppressor (TVS) to protect the device from overvoltage. Implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
The device is rated for operation between -55°C to 150°C (TJ). Ensure the device is operated within the recommended voltage range (VDS) and current range (ID) specified in the datasheet.

Trust Checks

Community Provided

System Verified

Community Approved

G3R75MT12J Overview

Use the download button to access the G3R75MT12J schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like G3R75, or try a keyword search, such as Power Field-Effect Transistors
