G3VM-61UV(TR05) - OMRON Electronics

Description: MOSFET Relays, VSON(R)4, SPST-NO, Surface mounting Terminals, Load voltage 60V, Continuous load current 400mA

Download G3VM-61UV(TR05) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

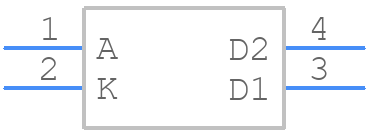

G3VM-61UV(TR05) - OMRON Electronics - PCB symbol
click to zoom
PCB Footprints
G3VM-61UV(TR05) - OMRON Electronics PCB footprint - Other - Other - VSON(R) 4-pin_2026
click to zoom
3D Models
G3VM-61UV(TR05) - OMRON Electronics - 3D model - Other - VSON(R) 4-pin_2026
click to zoom

G3VM-61UV(TR05) Details

  • Manufacturer Part Number:

    G3VM-61UV(TR05)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    6.96

  • Configuration:

    SINGLE

  • Control Current:

    0.0063 A

  • Control Voltage:

    4 V

  • Forward Current-Max:

    0.0063 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-state Resistance-Max:

    1.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    1.3 mm

  • Overall Length:

    2.75 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES

G3VM-61UV(TR05) Frequently Asked Questions (FAQs)

  • Omron recommends a PCB layout with a solid ground plane, minimal track length, and a decoupling capacitor (e.g., 100nF) between the VCC and GND pins to reduce noise and ensure stable operation.
  • To ensure reliable switching, Omron recommends using a pull-up resistor (e.g., 1kΩ) between the output and VCC, and a pull-down resistor (e.g., 1kΩ) between the input and GND. Additionally, ensure that the input signal is clean and free from noise.
  • The maximum allowable voltage for the input signal is 5.5V, which is the maximum rating for the device. Exceeding this voltage may damage the device.
  • The G3VM-61UV(TR05) is rated for operation up to 85°C. While it can tolerate high temperatures, Omron recommends derating the device's performance and ensuring proper heat dissipation to prevent overheating.
  • Omron recommends using ESD protection devices (e.g., TVS diodes) on the input and output lines to prevent damage from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G3VM-61UV(TR05) Overview

Use the download button to access the G3VM-61UV(TR05) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G3VM-, or try a keyword search, such as Solid State Relays
