G5RL-1-E-AC24 - OMRON Electronics

G5RL-1-E-AC24 Details

• Manufacturer Part Number:

  G5RL-1-E-AC24

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Reach Compliance Code:

  Unknown

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.50

• Manufacturer:

  OMRON Electronic Components

• YTEOL:

  7

• Body Breadth:

  12.7 mm

• Body Height:

  15.7 mm

• Body Length or Diameter:

  29 mm

• Coil Current(AC)-Max:

  31.3 A

• Coil Operate Voltage(AC):

  16.8 V

• Coil Power:

  750 mW

• Coil Release Voltage(AC):

  3.6 V

• Coil Resistance:

  443 Ω

• Coil Voltage(AC)-Max:

  31.3 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  AC

• Contact (AC) Max Rating R Load:

  16A@250VAC

• Contact Current(AC)-Max:

  16 A

• Contact Current(DC)-Max:

  16 A

• Contact (DC) Max Rating R Load:

  16A@24VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  24 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Alloy

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

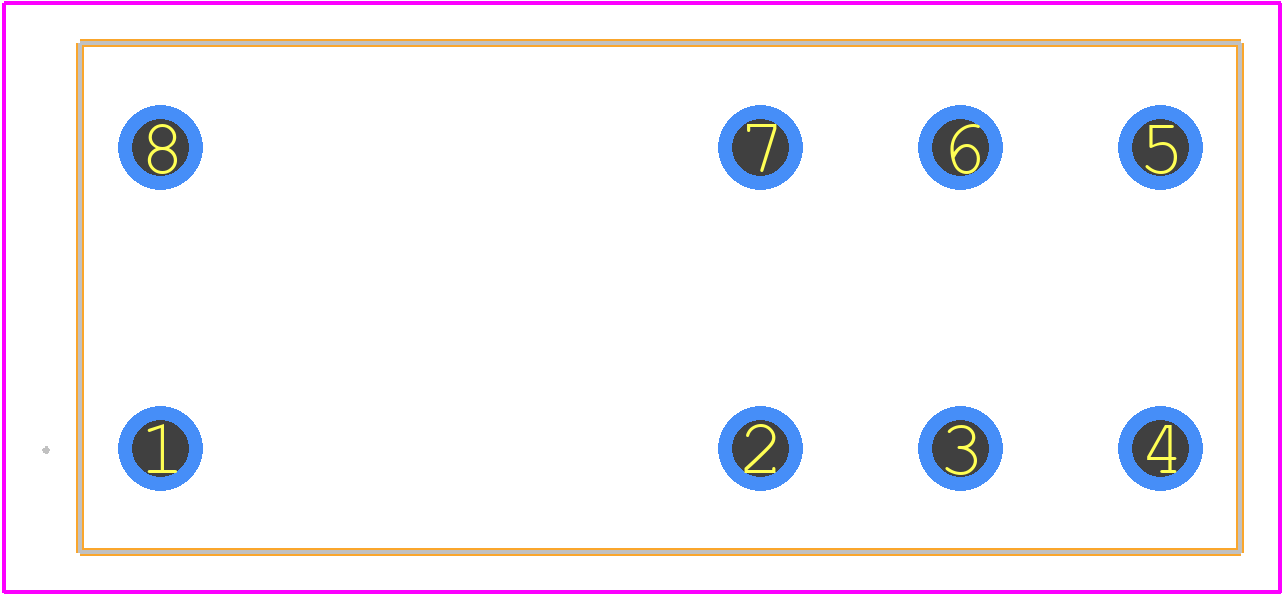

• Number of Terminals:

  8

• Operate Time:

  20 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  TRAY

• Physical Dimension:

  29mm x 12.7mm x 15.7mm

• Reference Standard:

  CQC; CSA; CUL; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  20 ms

• Surface Mount:

  NO

• Terminal Length:

  0.0035052070104140214 inch

• Termination Type:

  SOLDER
