G6H-2F-DC12 - OMRON Electronics

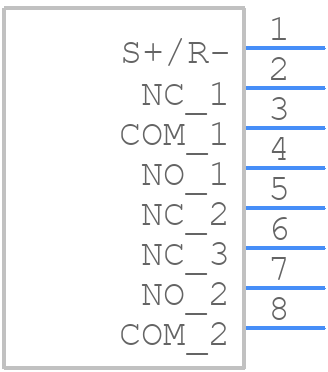

G6H-2F-DC12 Details

• Manufacturer Part Number:

  G6H-2F-DC12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  OMRON Electronic Components

• YTEOL:

  0

• Body Breadth:

  9 mm

• Body Height:

  6.5 mm

• Body Length or Diameter:

  14 mm

• Coil Current(DC)-Max:

  0.012 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  140 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  1028 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  62.5VA@125VAC

• Contact (AC) Max Rating R Load:

  .5A@125VAC

• Contact Current(AC)-Max:

  0.5 A

• Contact Current(DC)-Max:

  2 A

• Contact (DC) Max Power Rating R Load:

  33W@110VDC

• Contact (DC) Max Rating R Load:

  2A@30VDC

• Contact Resistance:

  60 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  200000 Cycle(s)

• End Contact Material:

  Silver

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  SURFACE MOUNT-STRAIGHT

• Number of Terminals:

  10

• Operate Time:

  3 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  14mm X 9mm X 6.5mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  2 ms

• Surface Mount:

  NO

• Termination Type:

  SOLDER
