Omron recommends a minimum PCB spacing of 5mm around the relay module to ensure proper heat dissipation and to prevent electrical noise interference. A recommended PCB layout is available in the Omron application note 'G6K Relay Module PCB Layout Guidelines'.
To ensure reliable operation in high-vibration environments, Omron recommends securing the relay module to the PCB using the provided screw holes and using a vibration-resistant connector. Additionally, the PCB should be designed to minimize flexure and ensure the relay module is not subjected to excessive stress.
The G6K-2F-Y-TRDC3 can withstand a maximum surge voltage of 4kV (IEC61000-4-5) between the input and output terminals. However, it's essential to follow proper surge protection design guidelines to ensure the relay module operates reliably in the presence of surges.
The G6K-2F-Y-TRDC3 is not designed for safety-critical applications and does not have any safety certifications (e.g., UL, IEC 61508). Omron recommends using safety-certified relays, such as the G7L or G9L series, for safety-critical applications.
To troubleshoot issues with the G6K-2F-Y-TRDC3, check the input voltage, coil resistance, and contact resistance. Ensure proper wiring, and verify that the relay module is properly seated on the PCB. Consult the Omron application note 'G6K Relay Module Troubleshooting Guide' for more detailed troubleshooting steps.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
G6K-2F-Y-TR-DC3 Overview

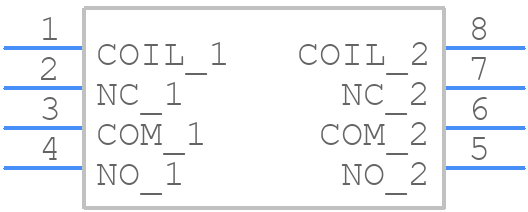

Use the download button to access the G6K-2F-Y-TR-DC3 schematic symbol, PCB footprint, and 3D model.
