G7J-4A-P-DC24 footprint, schematic symbol and 3D model by OMRON Electronics

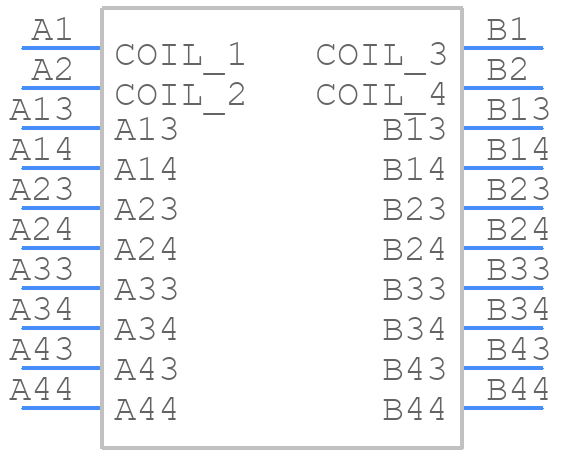

Symbol

click to zoom

PCB Footprints

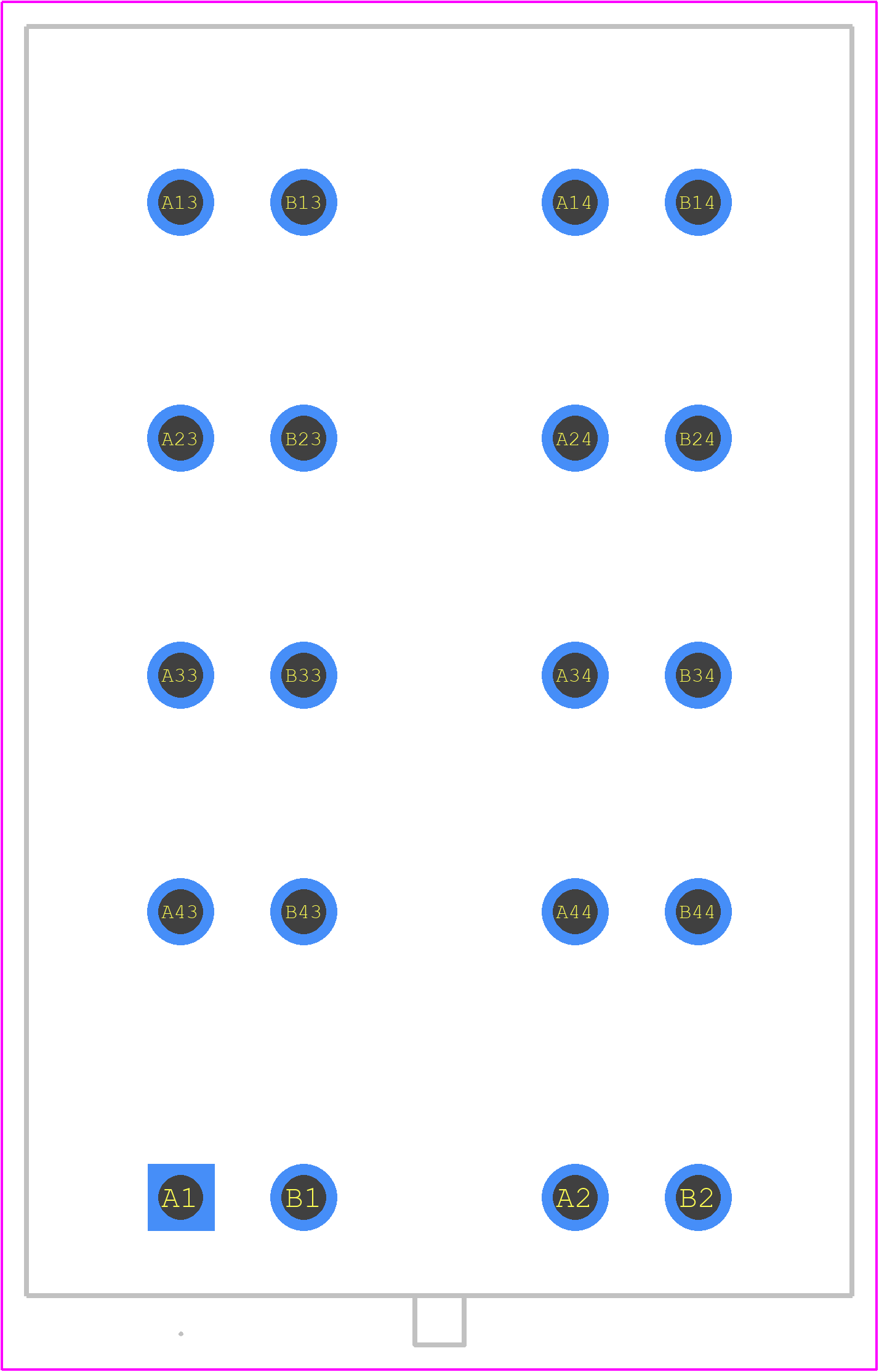

G7J-4A-P-DC24 - OMRON Electronics PCB footprint - Other - Other - G7J-4A-P-DC24-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for G7J-4A-P-DC24
Part Number G7J-4A-P-DC24
Manufacturer OMRON Electronics
Pin Count 20
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - G7J-4A-P-DC24-1
Released Date Sep 12, 2026
Last Modified Date Sep 10, 2026 4:09 PM UTC
Pinout / Pin List Click Here (Member Only)

G7J-4A-P-DC24 Details

Manufacturer Part Number:
G7J-4A-P-DC24
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.49.00.75
Manufacturer:
OMRON Electronic Components
YTEOL:
6.7
Body Breadth:
33.5 mm
Body Height:
51 mm
Body Length or Diameter:
51.5 mm
Coil Current(DC)-Max:
0.083 A
Coil Operate Voltage(DC):
18 V
Coil Power:
2000 mW
Coil Release Voltage(DC):
2.4 V
Coil Resistance:
288 Ω
Coil Voltage(DC)-Max:
24 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
25A@250VAC
Contact Current(AC)-Max:
25 A
Contact Current(DC)-Max:
25 A
Contact (DC) Max Rating R Load:
25A@125VDC
Contact Voltage(AC)-Max:
250 V
Contact Voltage(DC)-Max:
125 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
50 ms
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-25 °C
Physical Dimension:
51.5mm x 33.5mm x 51mm
Reference Standard:
CSA; UL
Relay Action:
MOMENTARY
Relay Function:
4PST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
50 ms
Surface Mount:
NO
Termination Type:
SOLDER

G7J-4A-P-DC24 Frequently Asked Questions (FAQs)

The maximum switching frequency of the G7J-4A-P-DC24 relay is 20 operations per minute.
The G7J-4A-P-DC24 relay is designed to operate in temperatures ranging from -40°C to 85°C. However, it's recommended to derate the relay's current capacity at high temperatures (above 60°C).
The recommended wire size for the G7J-4A-P-DC24 relay's terminals is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
The G7J-4A-P-DC24 relay is not designed for use in safety-critical applications. It's recommended to use relays with safety certifications (e.g., UL, EN, or IEC) for such applications.
The G7J-4A-P-DC24 relay is not designed for use in humid or wet environments. It's recommended to use relays with a higher ingress protection rating (e.g., IP67) for such applications.

Trust Checks

Community Provided

System Verified

Community Approved

G7J-4A-P-DC24 Overview

Use the download button to access the G7J-4A-P-DC24 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like G7J-4, or try a keyword search, such as Power/Signal Relays
