G7L-2A-P-PV-DC12 - OMRON Electronics

G7L-2A-P-PV-DC12 Details

• Manufacturer Part Number:

  G7L-2A-P-PV-DC12

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• Manufacturer:

  OMRON Electronic Components

• YTEOL:

  6.4

• Body Breadth:

  35.5 mm

• Body Height:

  41 mm

• Body Length or Diameter:

  52.5 mm

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  2300 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  63 Ω

• Coil Voltage(DC)-Max:

  13.2 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  30A@280VAC

• Contact Current(AC)-Max:

  30 A

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  280 V

• Contact/Output Supply Type:

  AC

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  Silver Alloy

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

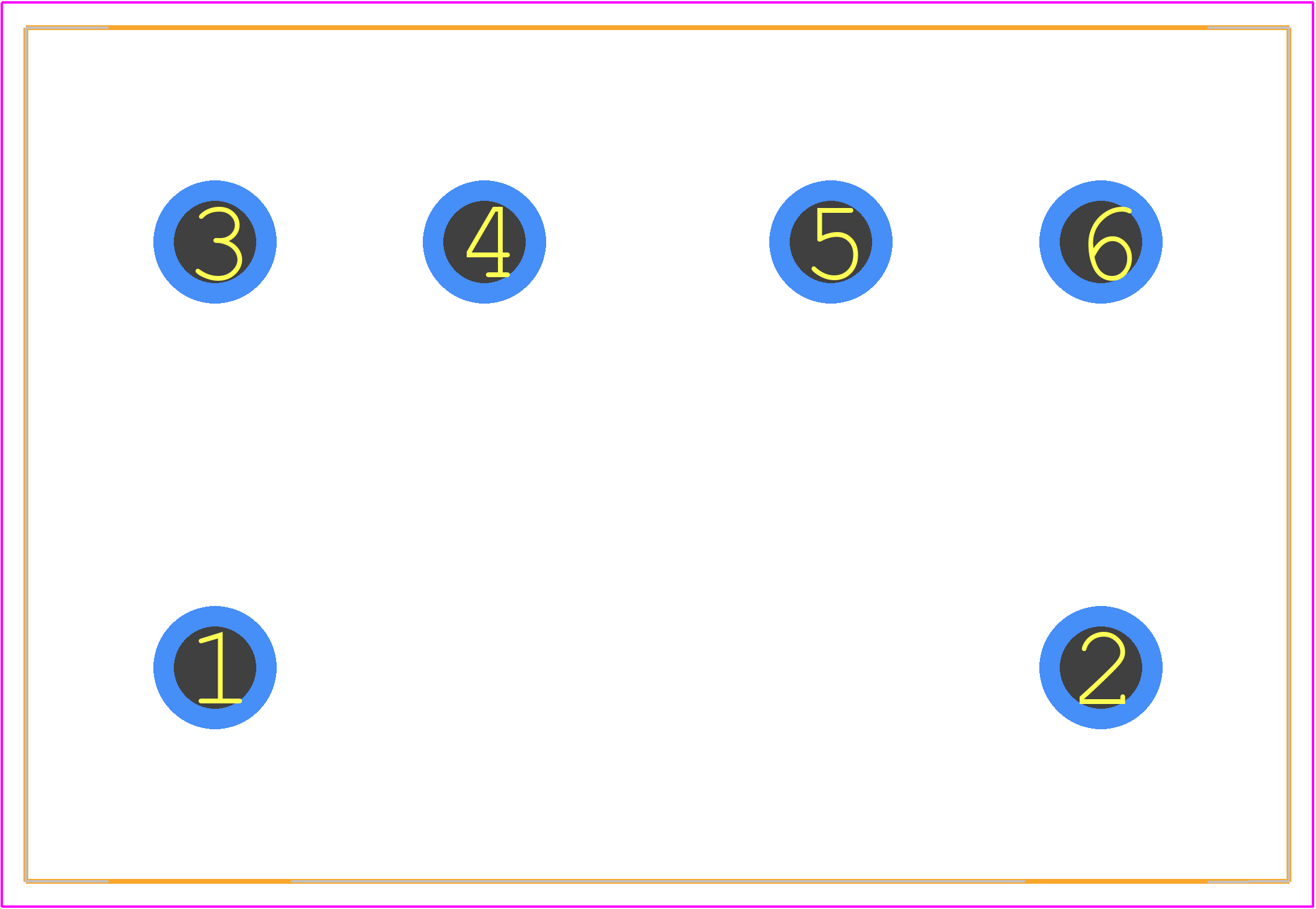

• Number of Terminals:

  6

• Operate Time:

  30 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Physical Dimension:

  52.5mm x 35.5mm x 41mm

• Reference Standard:

  UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM A

• Relay Function:

  DPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  30 ms

• Terminal Length:

  0.005999491998983998 inch

• Termination Type:

  SOLDER
