The maximum switching frequency of the G8V-RH-1C7T-R-DC12 relay is 20 operations per minute.
The relay is rated for operation in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. Consult the datasheet and Omron's application notes for more information.
The G8V-RH-1C7T-R-DC12 relay does not have a minimum load requirement, but it's recommended to have a minimum load of 10mA to ensure reliable switching.
The relay is designed for 12VDC operation, but it can be used with a 24VDC power supply with proper voltage regulation and protection. However, this may affect the relay's lifespan and performance. Consult Omron's application notes for more information.
The G8V-RH-1C7T-R-DC12 relay can withstand surges up to 2kV according to IEC 61000-4-5.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
G8V-RH-1C7T-R-DC12 Overview

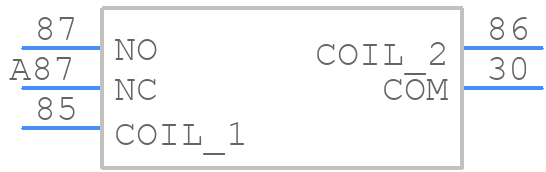

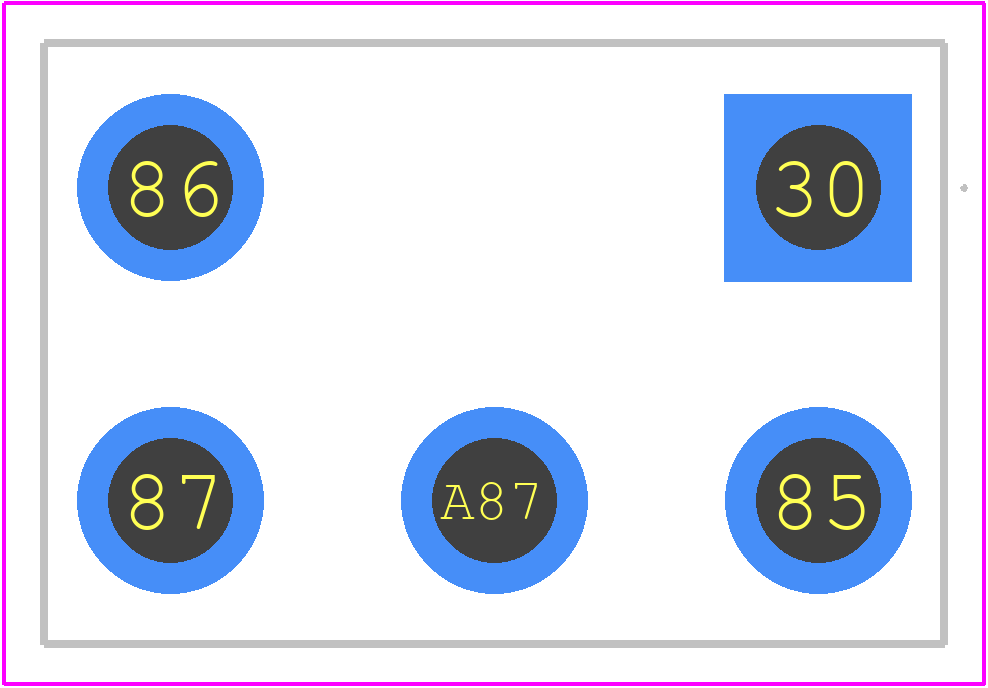

Use the download button to access the G8V-RH-1C7T-R-DC12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G8V-R,
or try a keyword search, such as Power/Signal Relays
