GA3199-AL footprint, schematic symbol and 3D model by COILCRAFT

Symbol

click to zoom

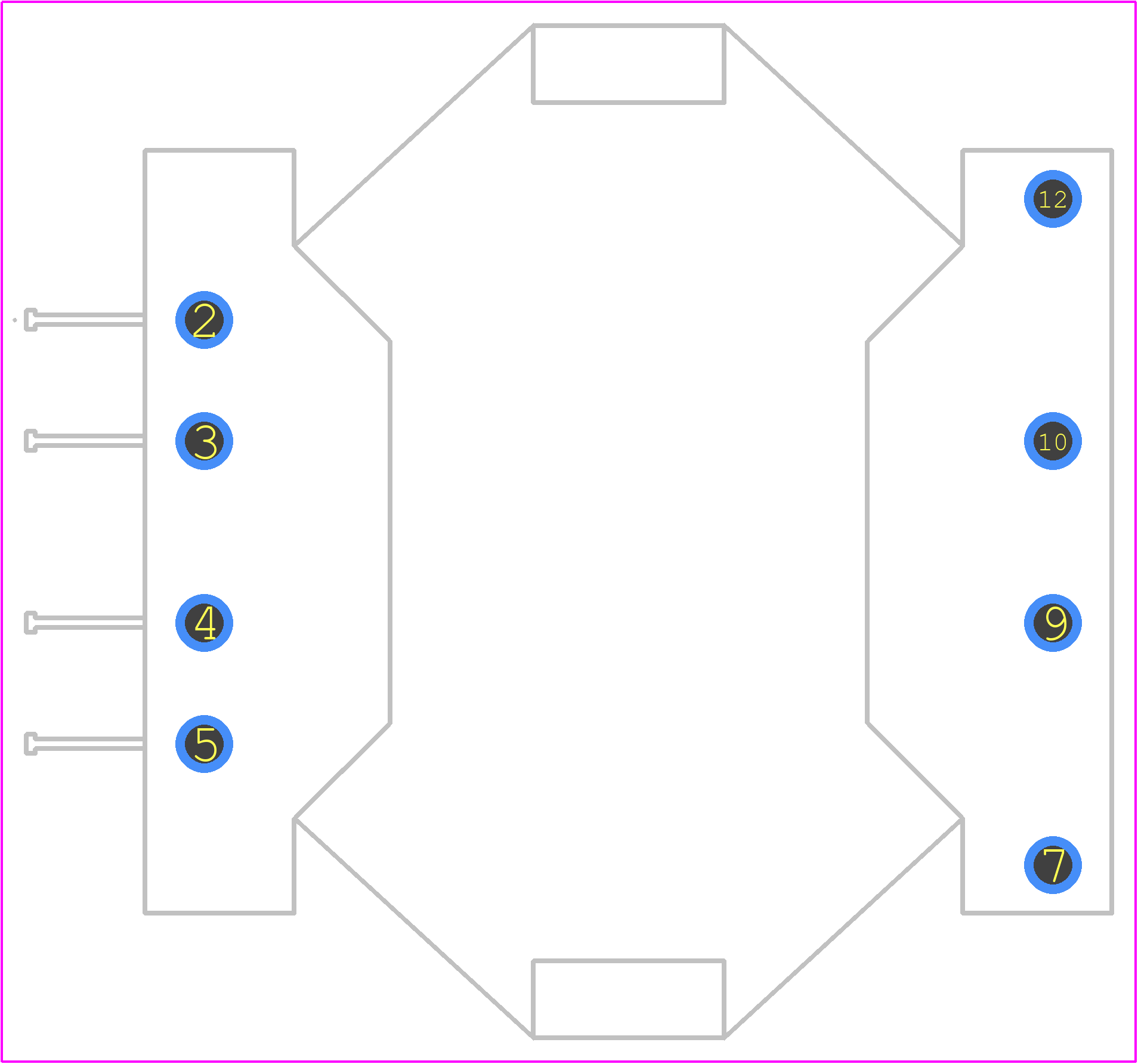

PCB Footprints

GA3199-AL - COILCRAFT PCB footprint - Other - Other - GA3199-AL-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GA3199-AL
Part Number GA3199-AL
Manufacturer COILCRAFT
Pin Count 8
Part Category Inductor
Package Category Other
Footprint Name Other - GA3199-AL-4
Released Date Apr 22, 2025
Last Modified Date Apr 24, 2025 3:31 PM UTC
Pinout / Pin List Click Here (Member Only)

GA3199-AL Details

Manufacturer Part Number:
GA3199-AL
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Manufacturer:
Coilcraft Inc
YTEOL:
6
Construction:
Rectangular
Core Material:
FERRITE
DC Resistance:
0.165 Ω
Inductance-Nom (L):
650 µH
Inductor Application:
POWER INDUCTOR
Inductor Type:
GENERAL PURPOSE INDUCTOR
Lead Diameter:
1 mm
Lead Length:
3.3 mm
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Height:
30 mm
Package Length:
45.5 mm
Package Style:
PCB Mount
Package Width:
42.4 mm
Rated Current-Max:
3.8 A
Self Resonance Frequency:
0.77 MHz
Shape/Size Description:
RECTANGULAR PACKAGE
Shielded:
YES
Surface Mount:
NO
Terminal Finish:
Tin/Silver - Tin - with Nickel barrier
Terminal Placement:
DUAL IN-LINE
Terminal Shape:
WIRE
Test Frequency:
0.01 MHz
Tolerance:
10%

GA3199-AL Frequently Asked Questions (FAQs)

The recommended land pattern for the GA3199-AL is a rectangular pad with a size of 3.8 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape.
The GA3199-AL has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate airflow, using thermal vias, and keeping the component away from heat sources.
The maximum current rating for the GA3199-AL is 3.2 A. However, the actual current handling capability depends on the operating frequency, temperature, and other application-specific factors.
Yes, the GA3199-AL is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q200 and is manufactured with a focus on high reliability and quality.
To ensure the GA3199-AL meets your application's EMI and EMC requirements, follow proper PCB layout guidelines, use shielding if necessary, and consider using a common-mode choke or other EMI filtering components.

Trust Checks

Expert Contribution

System Verified

Community Approved

GA3199-AL Overview

Use the download button to access the GA3199-AL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like GA319, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
