GA3550-BLD footprint, schematic symbol and 3D model by COILCRAFT

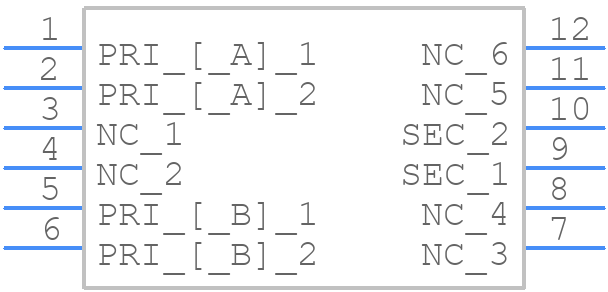

Symbol

click to zoom

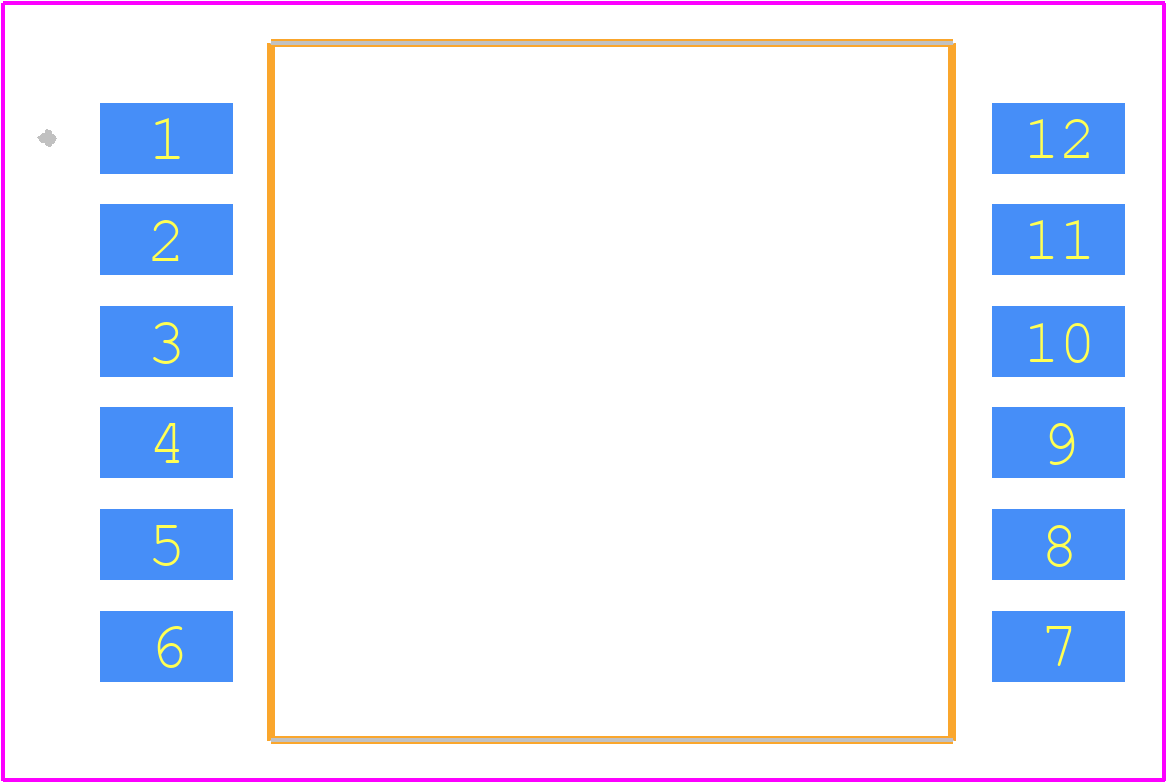

PCB Footprints

GA3550-BLD - COILCRAFT PCB footprint - Other - Other - GA3550-BLD-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GA3550-BLD
Part Number GA3550-BLD
Manufacturer COILCRAFT
Pin Count 12
Part Category Transformer
Package Category Other
Footprint Name Other - GA3550-BLD-2
Released Date Dec 9, 2020
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

GA3550-BLD Details

Manufacturer Part Number:
GA3550-BLD
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
7.49
Additional Feature:
HEIGHT DIM INCLUDES TERMINALS ALSO
Application:
GATE DRIVE
ET Product-Min:
165 V-us
Height:
10 mm
Isolation Voltage:
3000 V
Length:
17.4 mm
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Primary Inductance:
460 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver - Matte Tin - with Nickel barrier
Transformer Type:
PULSE TRANSFORMER
Turns Ratio (Np:Ns):
1:1:1
Width:
17 mm

GA3550-BLD Frequently Asked Questions (FAQs)

Coilcraft recommends a symmetrical PCB layout with a solid ground plane underneath the inductor to minimize radiation and ensure optimal performance. A minimum of 0.5 mm clearance around the inductor is recommended to prevent electromagnetic interference.
The GA3550-BLD has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a heat sink or thermal pad if the ambient temperature exceeds 85°C. Derate the current rating according to the temperature derating curve in the datasheet.
The SRF of the GA3550-BLD is not explicitly stated in the datasheet. However, Coilcraft provides an SRF calculator tool on their website, which estimates the SRF to be around 150-200 MHz for this specific inductor.
The GA3550-BLD is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, consider using a more ruggedized inductor or adding additional mechanical support to prevent damage or electrical failure.
Coilcraft's GA3550-BLD is a high-reliability component, but it's essential to follow proper storage, handling, and soldering procedures to prevent damage. Ensure that your manufacturing process meets the requirements outlined in the datasheet and industry standards.

Trust Checks

System Verified

GA3550-BLD Overview

Use the download button to access the GA3550-BLD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like GA355, or try a keyword search, such as Pulse/Datacom Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
