GAL20RA10B-10LP - Lattice Semiconductor

Description: SPLD GAL Family 10 Macro Cells 71.4MHz 5V 24-Pin PDIP

Download GAL20RA10B-10LP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

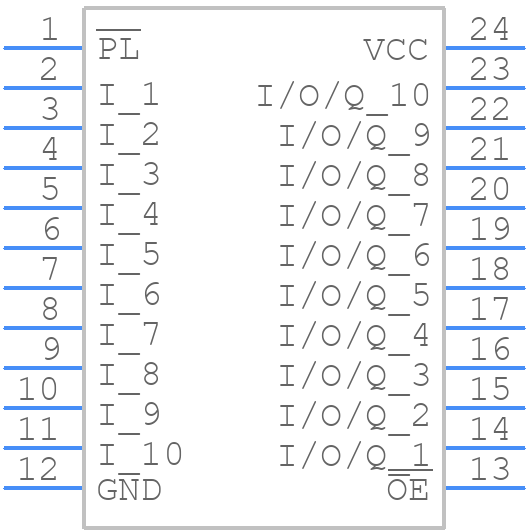

GAL20RA10B-10LP - Lattice Semiconductor - PCB symbol
click to zoom
PCB Footprints
GAL20RA10B-10LP - Lattice Semiconductor PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 24-Pin Plastic DIP
click to zoom
3D Models
GAL20RA10B-10LP - Lattice Semiconductor - 3D model - Dual-In-Line Packages - 24-Pin Plastic DIP
click to zoom

GAL20RA10B-10LP Details

  • Manufacturer Part Number:

    GAL20RA10B-10LP

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-24

  • Pin Count:

    24

  • HTS Code:

    8542.31.00.55

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    0

  • Additional Feature:

    REGISTER PRELOAD; POWER-UP RESET

  • Architecture:

    PAL-TYPE

  • Clock Frequency-Max:

    66.7 MHz

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e0

  • Length:

    31.75 mm

  • Number of Dedicated Inputs:

    10

  • Number of I/O Lines:

    10

  • Number of Inputs:

    20

  • Number of Outputs:

    10

  • Number of Product Terms:

    80

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    75 °C

  • Organization:

    10 DEDICATED INPUTS, 10 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Programmable Logic Type:

    EE PLD

  • Propagation Delay:

    10 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.334 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

GAL20RA10B-10LP Frequently Asked Questions (FAQs)

  • Lattice Semiconductor provides a PCB layout guide and reference design for GAL20RA10B-10LP, which can be found on their website. It's recommended to follow the guidelines for optimal performance and signal integrity.
  • The GAL20RA10B-10LP can be programmed using Lattice's ispVM system or third-party programming tools. The device can be programmed in-system or using a programming socket. Refer to the Lattice documentation for specific programming instructions.
  • The power consumption of GAL20RA10B-10LP depends on the operating frequency, voltage, and usage. According to the datasheet, the typical power consumption is around 100-200 mW at 1.8V and 10 MHz. However, it's recommended to consult the datasheet and perform power analysis for specific use cases.
  • The GAL20RA10B-10LP is a CPLD (Complex Programmable Logic Device) and has a different architecture compared to FPGAs. While it's possible to port FPGA designs to CPLDs, it may require significant modifications. It's recommended to consult with Lattice's technical support or a design expert to determine the feasibility of porting your design.
  • The GAL20RA10B-10LP has an industrial temperature range of -40°C to 100°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating factors for extended temperature ranges.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GAL20RA10B-10LP Overview

Use the download button to access the GAL20RA10B-10LP schematic symbol, PCB footprint, and 3D model.
