Part Image

GAL20RA10B-15LP - Lattice Semiconductor

Description: SPLD GAL Family 10 Macro Cells 50MHz 5V 24-Pin PDIP

Download GAL20RA10B-15LP Model

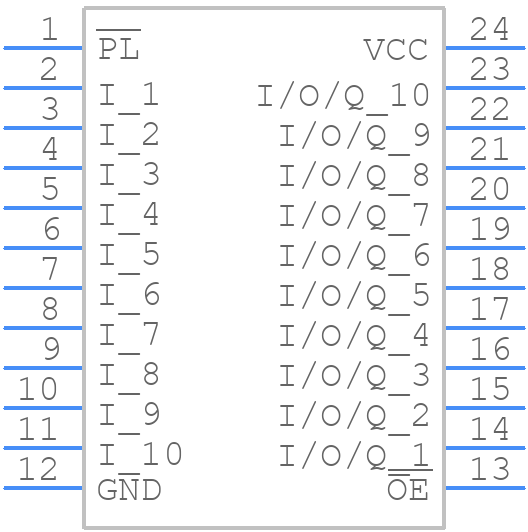

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
GAL20RA10B-15LP - Lattice Semiconductor PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 24-Pin Plastic DIP
click to zoom
3D Models
GAL20RA10B-15LP - Lattice Semiconductor  - 3D model - Dual-In-Line Packages - 24-Pin Plastic DIP
click to zoom

GAL20RA10B-15LP Details

  • Manufacturer Part Number:

    GAL20RA10B-15LP

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-24

  • Pin Count:

    24

  • Reach Compliance Code:

    Not_compliant

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    0

  • Additional Feature:

    REGISTER PRELOAD; POWER-UP RESET

  • Architecture:

    PAL-TYPE

  • Clock Frequency-Max:

    45 MHz

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e0

  • Length:

    31.75 mm

  • Number of Dedicated Inputs:

    10

  • Number of I/O Lines:

    10

  • Number of Inputs:

    20

  • Number of Outputs:

    10

  • Number of Product Terms:

    80

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    75 °C

  • Organization:

    10 DEDICATED INPUTS, 10 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    225

  • Programmable Logic Type:

    EE PLD

  • Propagation Delay:

    15 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.334 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GAL20RA10B-15LP Overview

Use the download button to access the GAL20RA10B-15LP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GAL20, or try a keyword search, such as Programmable Logic Devices

Parts related to GAL20RA10B-15LP

Showing 0 results

GAL20RA10B-15LP Alternates

Showing results

Image Part Number Model
Part Image GAL20RA10-15LP Lattice Semiconductor Corporation

EE PLD, 15ns, PAL-Type, CMOS, PDIP24, PLASTIC, DIP-24

Part Image PALCE20RA10H-15PI AMD

EE PLD, 15ns, PAL-Type, CMOS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24

Part Image PALCE20RA10H-15PC Lattice Semiconductor Corporation

EE PLD, 15ns, PAL-Type, CMOS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24

Part Image PALCE20RA10H-15PC AMD

EE PLD, 15ns, PAL-Type, CMOS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24
