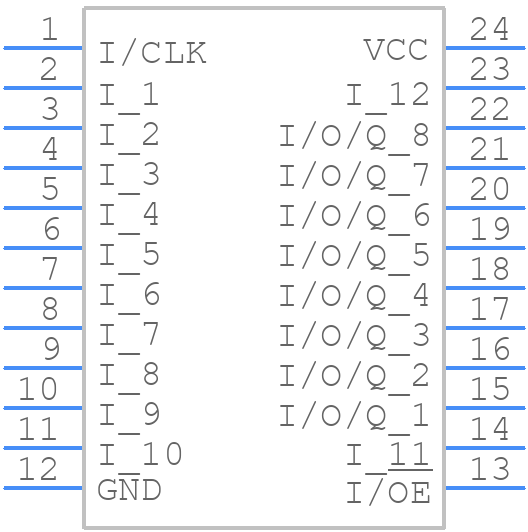

GAL20V8B-15LP - Lattice Semiconductor

GAL20V8B-15LP Details

• Manufacturer Part Number:

  GAL20V8B-15LP

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-24

• Pin Count:

  24

• HTS Code:

  8542.31.00.55

• Manufacturer:

  Lattice Semiconductor Corporation

• YTEOL:

  0

• Additional Feature:

  REGISTER PRELOAD; POWER-UP RESET

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  45.5 MHz

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e0

• Length:

  31.75 mm

• Number of Dedicated Inputs:

  12

• Number of I/O Lines:

  8

• Number of Inputs:

  20

• Number of Outputs:

  8

• Number of Product Terms:

  64

• Number of Terminals:

  24

• Operating Temperature-Max:

  75 °C

• Organization:

  12 DEDICATED INPUTS, 8 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  15 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.334 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
