GAL6001B-30LJ - Lattice Semiconductor

Description: Simple E²PLD, Programmable Logic Sequencer, 28 Pin, Plastic, PLCC

Download GAL6001B-30LJ Model

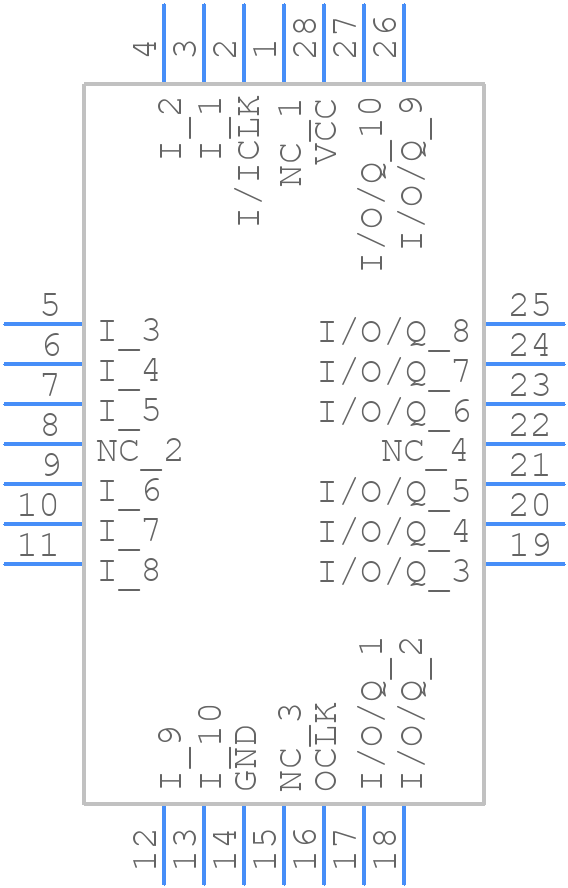

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

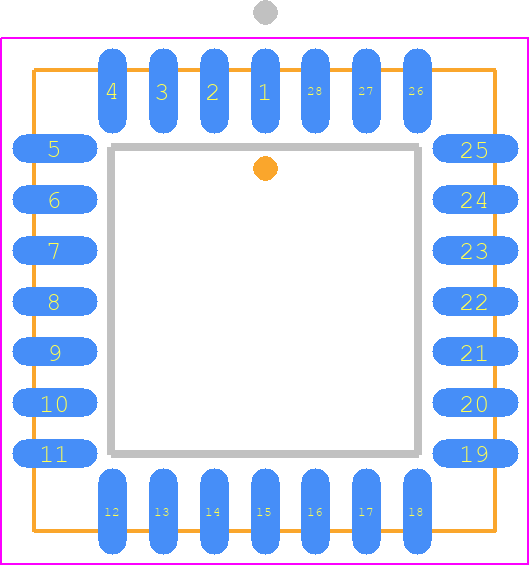

PCB Footprints
GAL6001B-30LJ - Lattice Semiconductor PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 28-Pin PLCC
click to zoom

GAL6001B-30LJ Details

  • Manufacturer Part Number:

    GAL6001B-30LJ

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.55

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    0

  • Additional Feature:

    REGISTER PRELOAD; POWER-UP RESET

  • Architecture:

    PLS-TYPE

  • Clock Frequency-Max:

    27 MHz

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e0

  • Length:

    11.5062 mm

  • Moisture Sensitivity Level:

    1

  • Number of Dedicated Inputs:

    10

  • Number of I/O Lines:

    10

  • Number of Inputs:

    20

  • Number of Outputs:

    10

  • Number of Product Terms:

    75

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    75 °C

  • Organization:

    10 DEDICATED INPUTS, 10 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    225

  • Programmable Logic Type:

    EE PLD

  • Propagation Delay:

    30 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.5062 mm
