The recommended power-up sequence is to apply VCC first, followed by VPP, and then the input signals. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
During power-up, the JTAG interface should be held in a high-impedance state until VCC reaches its minimum specified voltage. During power-down, the JTAG interface should be held in a high-impedance state until VCC reaches 0V. This ensures that the JTAG interface does not interfere with the device's power-up and power-down sequences.
The maximum frequency of operation for the GAL6002B-15LJ is 150 MHz. However, this frequency may vary depending on the specific application, operating conditions, and device configuration. It is recommended to consult the datasheet and application notes for more information.
The GAL6002B-15LJ has a built-in clock tree that can be configured using the device's clock management unit. The clock tree can be implemented using the device's internal clock buffers and clock distribution networks. It is recommended to consult the datasheet and application notes for more information on implementing a clock tree in the GAL6002B-15LJ.
The maximum current draw of the GAL6002B-15LJ is 150 mA. However, this current draw may vary depending on the specific application, operating conditions, and device configuration. It is recommended to consult the datasheet and application notes for more information on power consumption and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GAL6002B-15LJ Overview

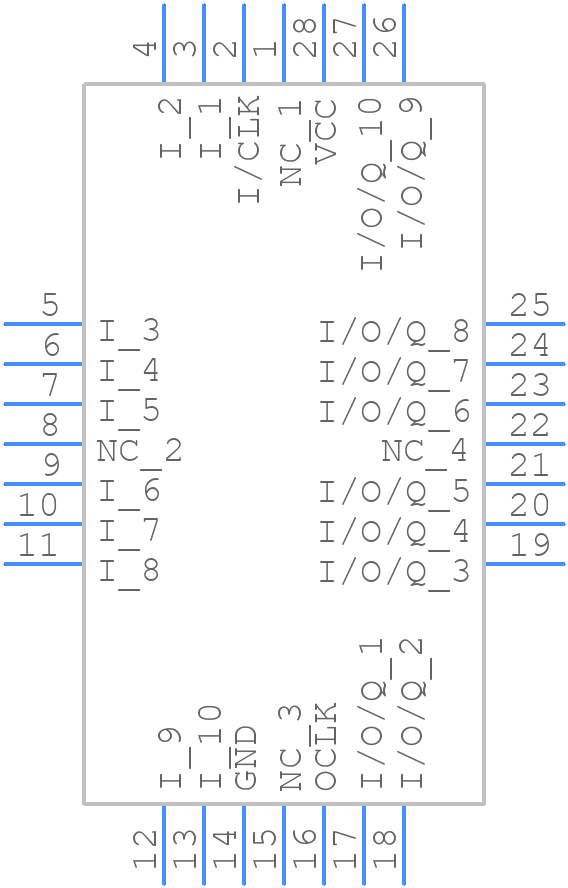

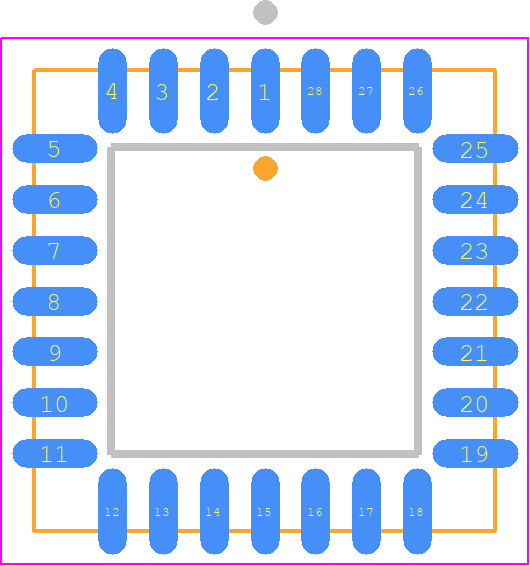

Use the download button to access the GAL6002B-15LJ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like GAL60,
or try a keyword search, such as Programmable Logic Devices
