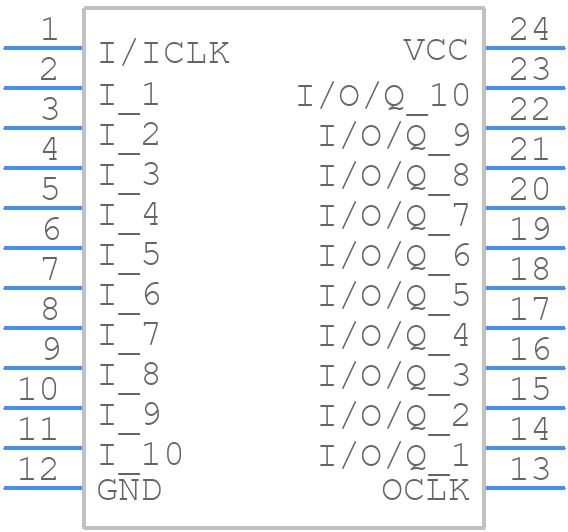

GAL6002B-20LP - Lattice Semiconductor

GAL6002B-20LP Details

• Manufacturer Part Number:

  GAL6002B-20LP

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  DIP-24

• Pin Count:

  24

• HTS Code:

  8542.31.00.55

• Manufacturer:

  Lattice Semiconductor Corporation

• YTEOL:

  0

• Additional Feature:

  REGISTER PRELOAD; POWER-UP RESET

• Architecture:

  PLS-TYPE

• Clock Frequency-Max:

  37 MHz

• In-System Programmable:

  NO

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e0

• JTAG BST:

  NO

• Number of Dedicated Inputs:

  10

• Number of I/O Lines:

  10

• Number of Inputs:

  20

• Number of Macro Cells:

  38

• Number of Outputs:

  10

• Number of Product Terms:

  75

• Number of Terminals:

  24

• Operating Temperature-Max:

  75 °C

• Organization:

  10 DEDICATED INPUTS, 10 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  20 ns

• Qualification Status:

  Not Qualified

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  DUAL
