GAN039-650NTBA footprint, schematic symbol and 3D model by Nexperia

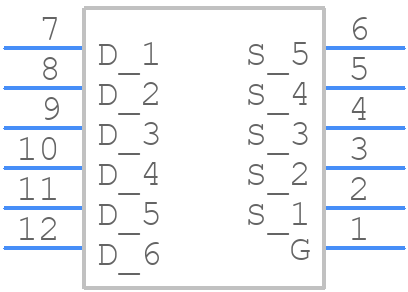

Symbol

click to zoom

PCB Footprints

GAN039-650NTBA - Nexperia PCB footprint - Other - Other - GAN039-650NTBA-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GAN039-650NTBA
Part Number GAN039-650NTBA
Manufacturer Nexperia
Pin Count 12
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - GAN039-650NTBA-1
Released Date Mar 20, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

GAN039-650NTBA Details

Manufacturer Part Number:
GAN039-650NTBA
Part Life Cycle Code:
Active Unconfirmed
Package Description:
SOT-8005, 12 PIN
ECCN Code:
EAR99
Date Of Intro:
2020-07-31
Manufacturer:
Nexperia
YTEOL:
2
Case Connection:
SOURCE
Configuration:
SINGLE WITH BUILT-IN FET AND DIODE
DS Breakdown Voltage-Min:
650 V
Drain Current-Max (ID):
60 A
Drain-source On Resistance-Max:
0.039 Ω
FET Technology:
HIGH ELECTRON MOBILITY
Feedback Cap-Max (Crss):
5 pF
JESD-30 Code:
R-PDSO-G12
Number of Elements:
2
Number of Terminals:
12
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
300 W
Pulsed Drain Current-Max (IDM):
240 A
Reference Standard:
AEC-Q101; IEC-60134
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Transistor Application:
SWITCHING
Transistor Element Material:
GALLIUM NITRIDE

GAN039-650NTBA Frequently Asked Questions (FAQs)

Nexperia recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
Ensure proper heat sinking, follow the recommended PCB layout, and consider derating the device's power handling at high temperatures (above 125°C).
The GAN039-650NTBA can withstand voltage transients up to 700 V for a duration of 10 ms, but it's recommended to follow the datasheet's guidelines for voltage slew rates and dv/dt.
Yes, but it's crucial to ensure that the devices are properly matched, and the gate drive and layout are designed to minimize differences in switching times and voltage drops.
Nexperia recommends a gate drive voltage of 15 V to 20 V, with a current capability of at least 2 A to 5 A, depending on the specific application and switching frequency.

Trust Checks

Community Provided

System Verified

Community Approved

GAN039-650NTBA Overview

Use the download button to access the GAN039-650NTBA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like GAN03, or try a keyword search, such as Power Field-Effect Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
