The recommended PCB layout involves placing the device near the edge of the board, using a solid ground plane, and minimizing thermal resistance. A thermal pad on the bottom of the package should be connected to a thermal relief pattern on the PCB. A heat sink or thermal interface material can be used to improve heat dissipation.
To ensure reliable operation, follow the recommended operating conditions, including voltage and current ratings. Implement proper thermal management, and consider using a thermistor or temperature sensor to monitor the device temperature. Additionally, ensure that the PCB design and layout minimize thermal gradients and hotspots.
The GBU8MP_T0_00101 has built-in ESD protection, but it's still essential to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging. Avoid touching the device pins or exposing them to static electricity.
While the GBU8MP_T0_00101 is a high-performance device, it's essential to consult with PanJit Semiconductor or a qualified representative to determine its suitability for high-reliability or automotive applications. They can provide guidance on the device's qualification status, reliability data, and any specific requirements or restrictions.
Follow the recommended soldering profile and techniques, such as using a reflow oven or wave soldering, to ensure reliable connections. Use a solder paste with a melting point compatible with the device's package, and avoid excessive soldering temperatures or times.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GBU8MP_T0_00101 Overview

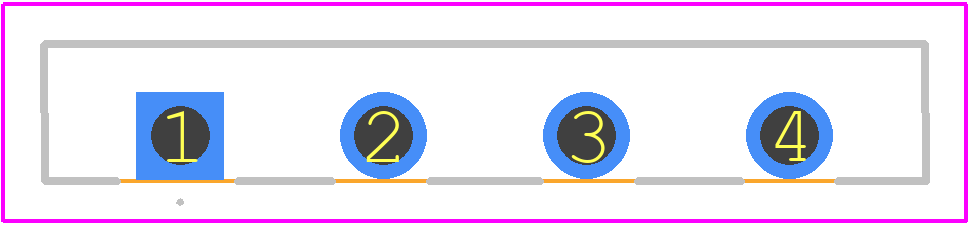

Use the download button to access the GBU8MP_T0_00101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GBU8M,
or try a keyword search, such as Bridge Rectifier Diodes
