GD82547EI - Intel

GD82547EI Details

• Manufacturer Part Number:

  GD82547EI

• Part Life Cycle Code:

  Obsolete

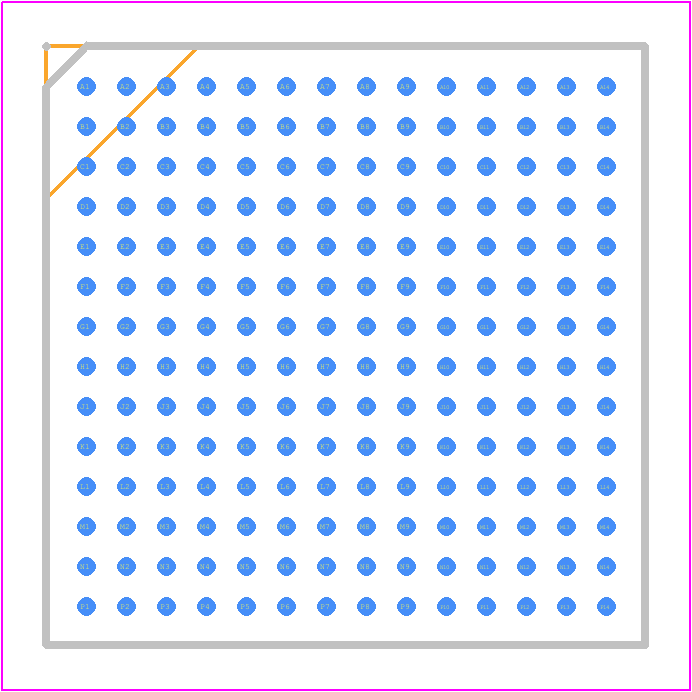

• Part Package Code:

  BGA

• Package Description:

  15 X 15 MM, PLASTIC, BGA-196

• Pin Count:

  196

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• Boundary Scan:

  YES

• Clock Frequency-Max:

  25 MHz

• Communication Protocol:

  ASYNC, BIT

• Data Transfer Rate-Max:

  125 MBps

• JESD-30 Code:

  S-PBGA-B196

• JESD-609 Code:

  e0

• Length:

  15 mm

• Low Power Mode:

  YES

• Number of Serial I/Os:

  1

• Number of Terminals:

  196

• Operating Temperature-Max:

  55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA196,14X14,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  15 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
