GDE25-1 - Triad Magnetics

Description: Pulse Transformers GATE DRIVE 1:1 XFMR 0.680uH

Download GDE25-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

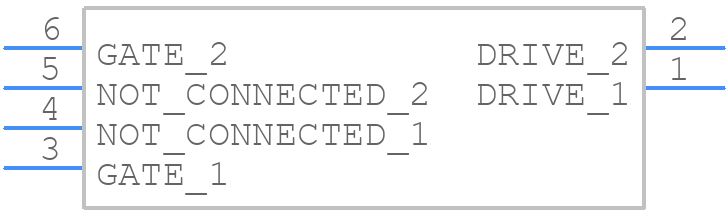

GDE25-1 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

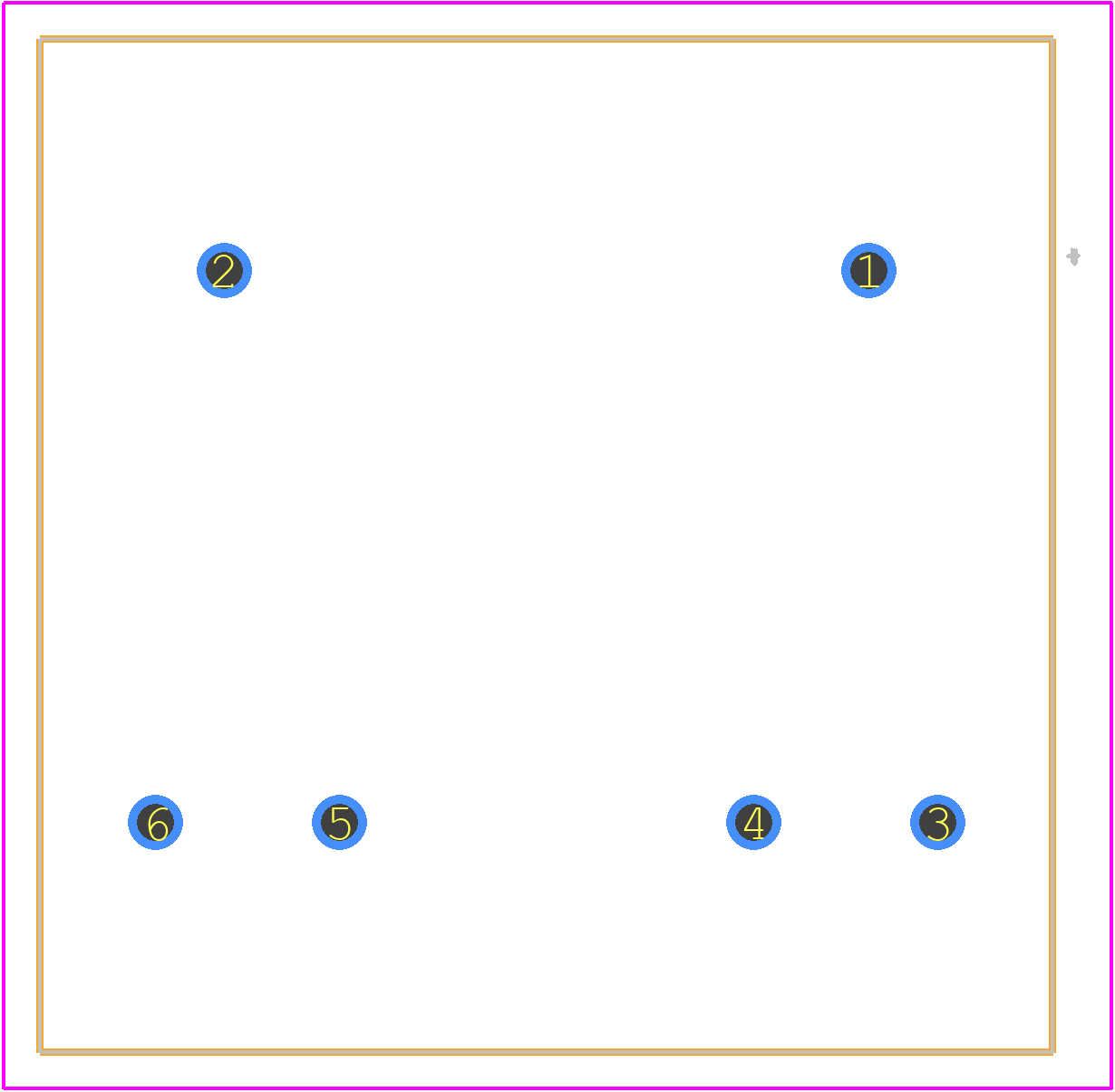

GDE25-1 - Triad Magnetics PCB footprint - Other - Other - GDE25-1-1
click to zoom
3D Models
GDE25-1 - Triad Magnetics - 3D model - Other - GDE25-1-1
click to zoom

GDE25-1 Details

  • Manufacturer Part Number:

    GDE25-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.95

  • Additional Feature:

    WIDTH DIMENSION INCLUDES TERMINAL ALSO

  • Application:

    GATE DRIVE

  • Approvals:

    UL

  • ET Product-Min:

    540 V-us

  • Height:

    30.48 mm

  • Isolation Voltage:

    3750 V

  • Length:

    27.94 mm

  • Load Resistance:

    0.35 Ω

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Functions:

    1

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Primary Inductance:

    680 µH

  • Surface Mount:

    NO

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    26.416 mm

GDE25-1 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the GDE25-1 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Yes, the GDE25-1 can be used in a switching power supply, but it's recommended to use a suitable shielding method to minimize EMI and ensure reliable operation.
  • The maximum ambient temperature for the GDE25-1 is 130°C, but derating is required above 80°C to ensure reliable operation.
  • The GDE25-1 is designed for low-voltage applications, but it can be used in high-voltage applications up to 500 Vrms with proper insulation and safety precautions.
  • The recommended wire size for the GDE25-1 is 18-20 AWG, but it depends on the specific application and current requirements.
