GDE25-2 - Triad Magnetics

Description: Pulse Transformers GATE DRIVE 1:1:1 XFMR 0.680uH

Download GDE25-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

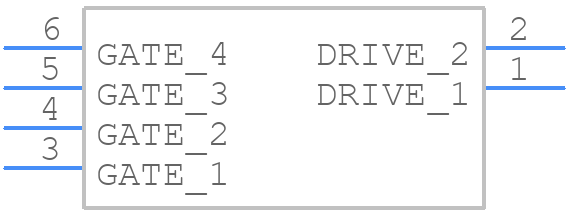

GDE25-2 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

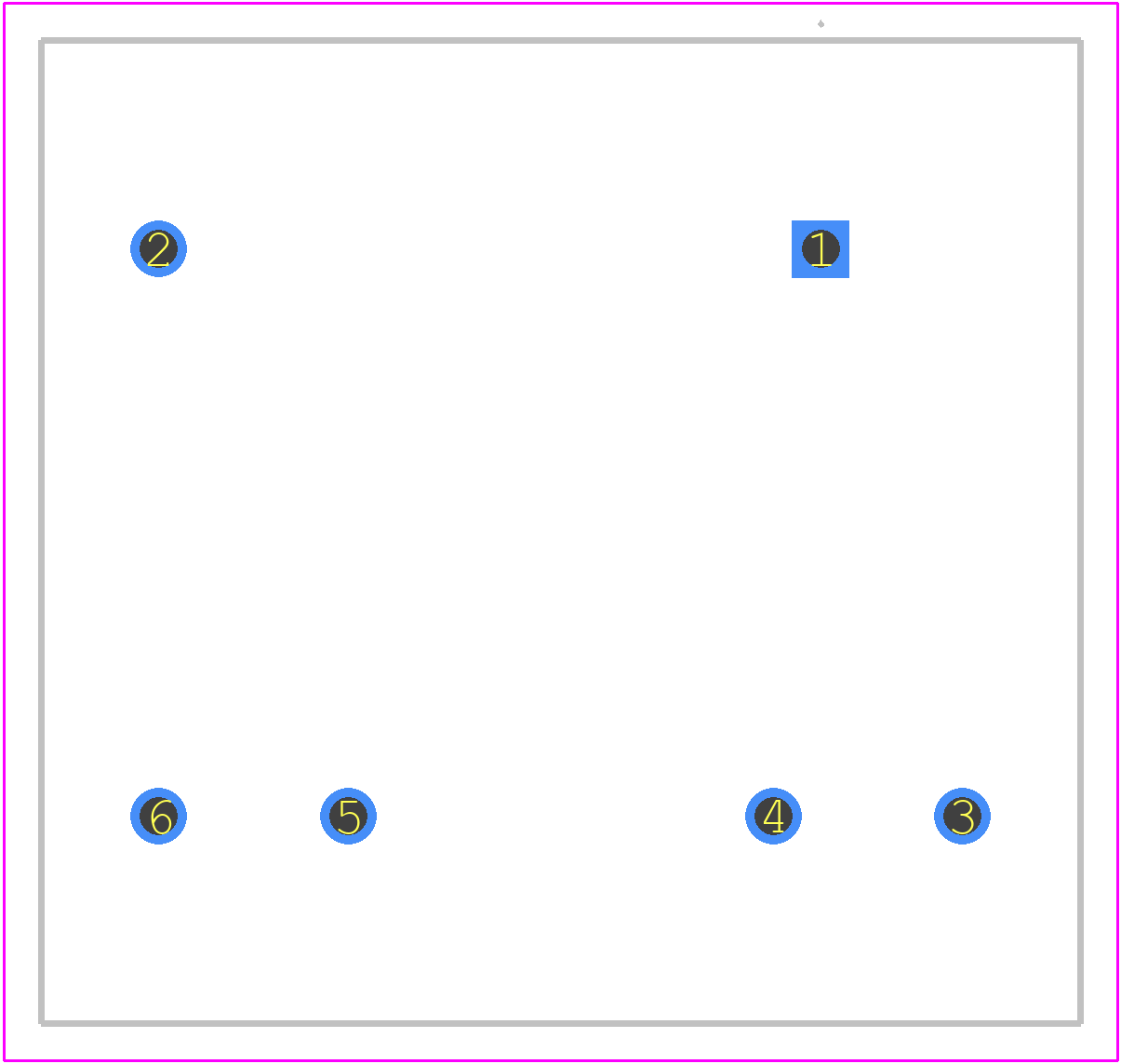

GDE25-2 - Triad Magnetics PCB footprint - Other - Other - GDE25-2-2
click to zoom
3D Models
GDE25-2 - Triad Magnetics - 3D model - Other - GDE25-2-2
click to zoom

GDE25-2 Details

  • Manufacturer Part Number:

    GDE25-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.95

  • Additional Feature:

    WIDTH DIMENSION INCLUDES TERMINAL ALSO

  • Application:

    GATE DRIVE

  • Approvals:

    UL

  • ET Product-Min:

    540 V-us

  • Height:

    30.48 mm

  • Isolation Voltage:

    3750 V

  • Length:

    27.94 mm

  • Load Resistance:

    0.65 Ω

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Functions:

    1

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Primary Inductance:

    680 µH

  • Surface Mount:

    NO

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1:1

  • Width:

    26.416 mm

GDE25-2 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the GDE25-2 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring that the transformer is not operated above its maximum temperature rating of 130°C.
  • The maximum allowable voltage imbalance is ±10% to ensure reliable operation and prevent overheating.
  • Yes, the GDE25-2 can be used in a push-pull configuration, but it requires careful design and layout to ensure proper operation and minimize electromagnetic interference (EMI).
  • The recommended creepage distance for the GDE25-2 is 4.5 mm to ensure safe and reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GDE25-2 Overview

Use the download button to access the GDE25-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GDE25, or try a keyword search, such as Pulse/Datacom Transformers
