The recommended operating temperature range for the GDE25-6 is -40°C to 125°C, with a maximum storage temperature of 150°C.
While the GDE25-6 has a high voltage rating, it is not designed for high-voltage applications. It is recommended to use a transformer with a higher voltage rating, such as the VPS series, for high-voltage applications.
Proper thermal management for the GDE25-6 can be achieved by providing adequate airflow, using a heat sink, and ensuring that the transformer is not operated above its maximum temperature rating.
The maximum power rating for the GDE25-6 is 25VA, with a maximum current rating of 1.25A.
Yes, the GDE25-6 can be used in switching power supplies, but it is recommended to use a transformer with a higher frequency rating, such as the VPS series, for high-frequency switching applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GDE25-6 Overview

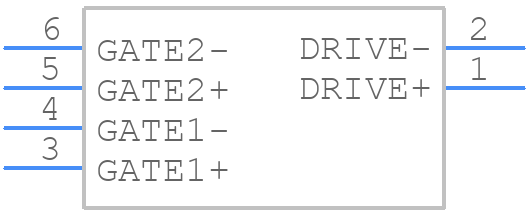

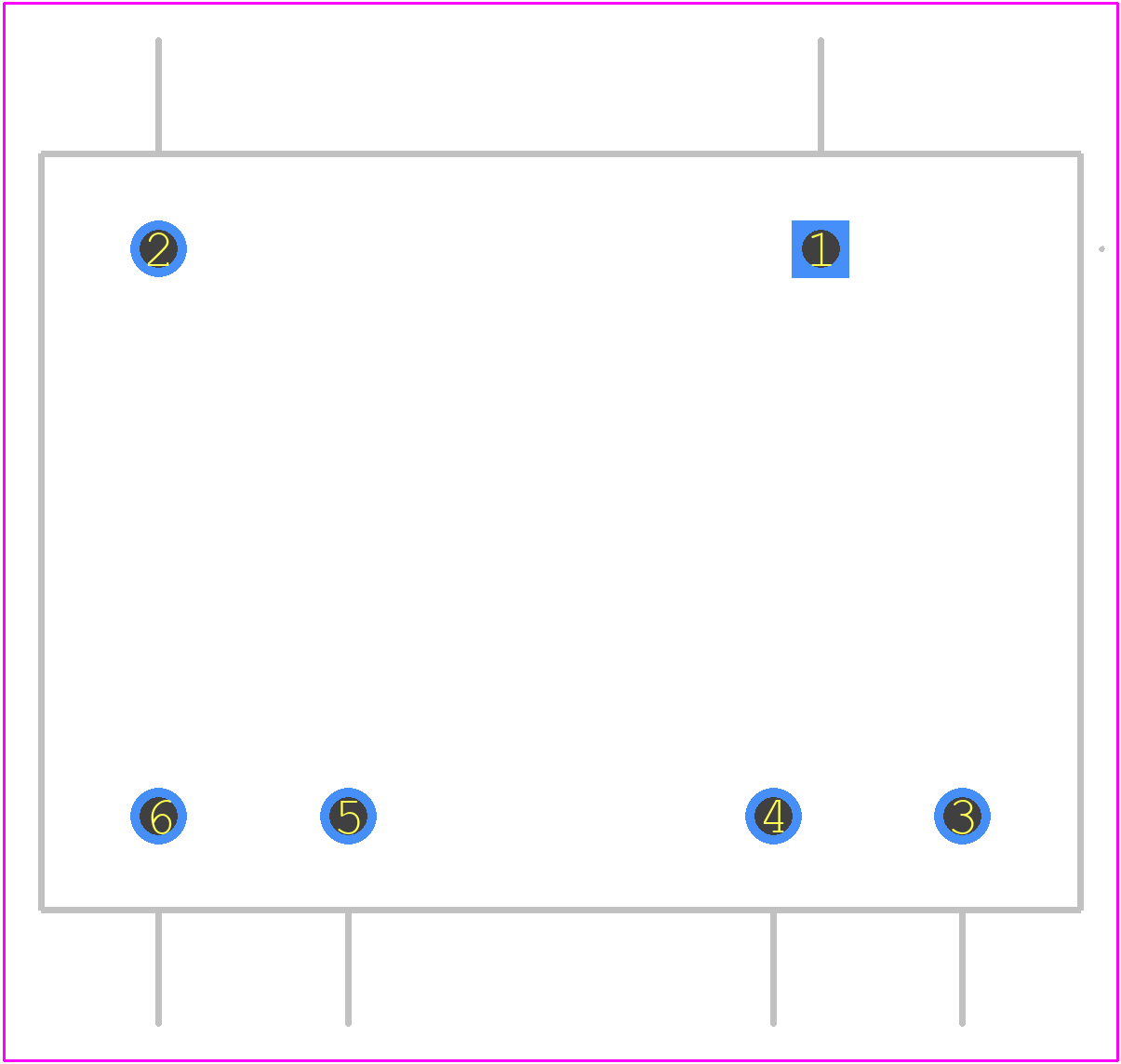

Use the download button to access the GDE25-6 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like GDE25,
or try a keyword search, such as Pulse/Datacom Transformers
