GDX-PNS-66 - Kycon

GDX-PNS-66 Details

• Manufacturer Part Number:

  GDX-PNS-66

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Kycon Inc

• Additional Feature:

  ROHS COMPLIANT

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.646 inch

• Body Depth:

  0.656 inch

• Body Length:

  0.555 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  TELECOM AND DATACOM CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Resistance:

  20 mΩ

• Contact Style:

  TELCOM, MODULAR

• Dielectric Withstanding Voltage:

  1400VAC V

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number of Ports:

  1

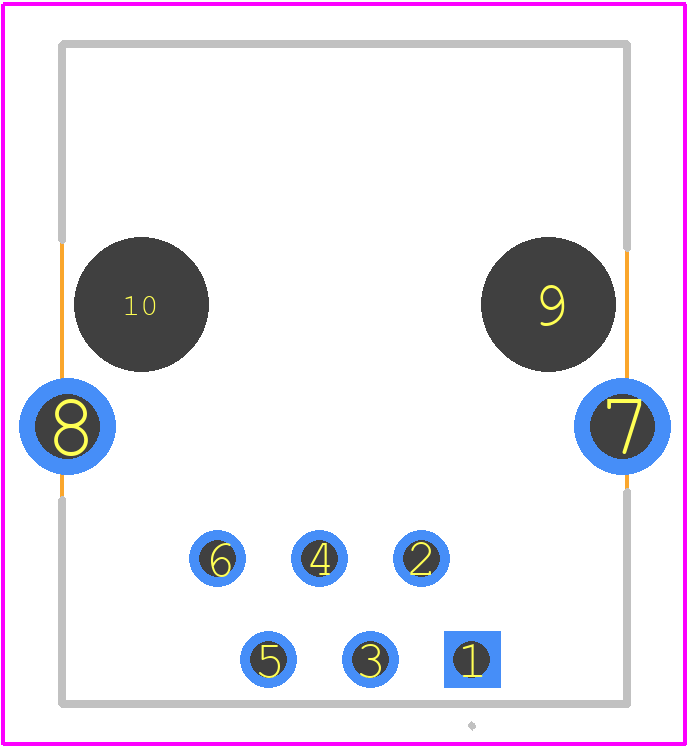

• PCB Contact Pattern:

  STAGGERED

• Plating Thickness:

  15u inch

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  CSA, UL

• Shell Finish:

  NICKEL

• Shell Material:

  PHOSPHOR BRONZE

• Terminal Length:

  0.138 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  6
