GF-126-0327 - CW Industries

Description: Switch Slide ON ON DPDT Top Slide 8.5A 125VAC 125VDC 10000Cycles PC Pins Panel Mount/Through Hole

Download GF-126-0327 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

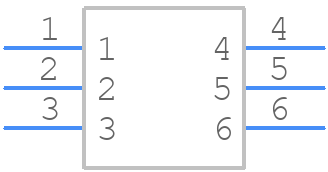

GF-126-0327 - CW Industries - PCB symbol
click to zoom
PCB Footprints

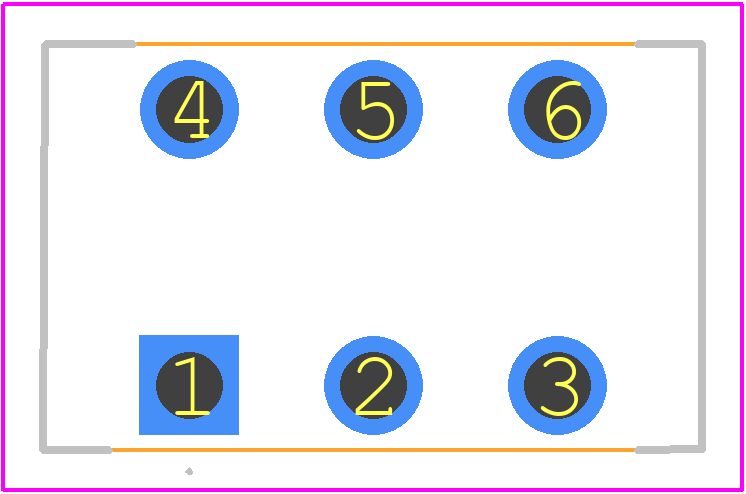

GF-126-0327 - CW Industries PCB footprint - Other - Other - GF-126-0327-1
click to zoom
3D Models
GF-126-0327 - CW Industries - 3D model - Other - GF-126-0327-1
click to zoom

GF-126-0327 Details

  • Manufacturer Part Number:

    GF-126-0327

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Manufacturer:

    CW Industries

  • YTEOL:

    0

  • Body Breadth:

    10.16 mm

  • Body Height:

    8.36 mm

  • Body Length or Diameter:

    16.46 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Positions:

    2

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    SLIDE SWITCH

  • Terminal Finish:

    Silver (Ag)

  • Termination Type:

    SOLDER

GF-126-0327 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals of GF-126-0327 is 0.5-1.0 in-lbs (0.056-0.113 Nm).
  • Yes, GF-126-0327 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
  • The maximum operating temperature range for GF-126-0327 is -40°C to 125°C (-40°F to 257°F).
  • Yes, GF-126-0327 is compatible with lead-free soldering processes. However, it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure optimal performance.
  • The recommended wire size for the screw terminals of GF-126-0327 is 24-18 AWG (0.25-1.5 mm²).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GF-126-0327 Overview

Use the download button to access the GF-126-0327 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GF-12, or try a keyword search, such as Slide Switches
