GFSH624M47B/AA - Amphenol

Description: Connector with 6 size 16 power contacts and 24 size 22 signal contacts, Male, Solder, right angle (90°) PCB mount, Right angle (90°) PCB mount through hole angle brackets

Download GFSH624M47B/AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

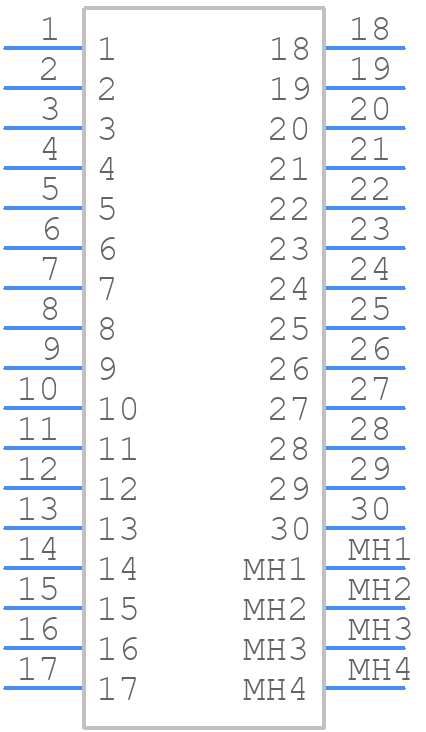

GFSH624M47B/AA - Amphenol - PCB symbol
click to zoom
PCB Footprints

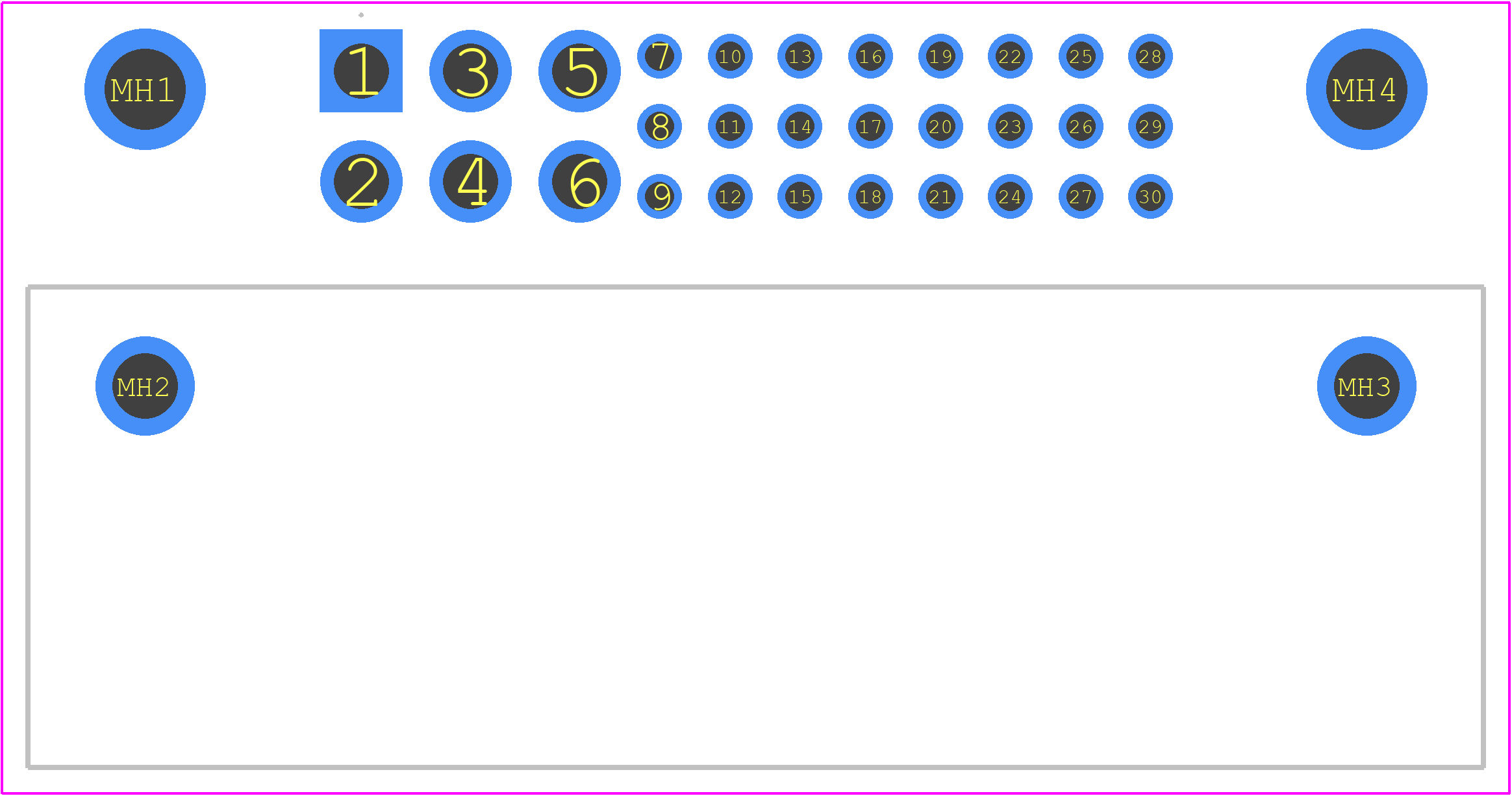

GFSH624M47B/AA - Amphenol PCB footprint - Other - Other - GFSH624M47B/AA-3
