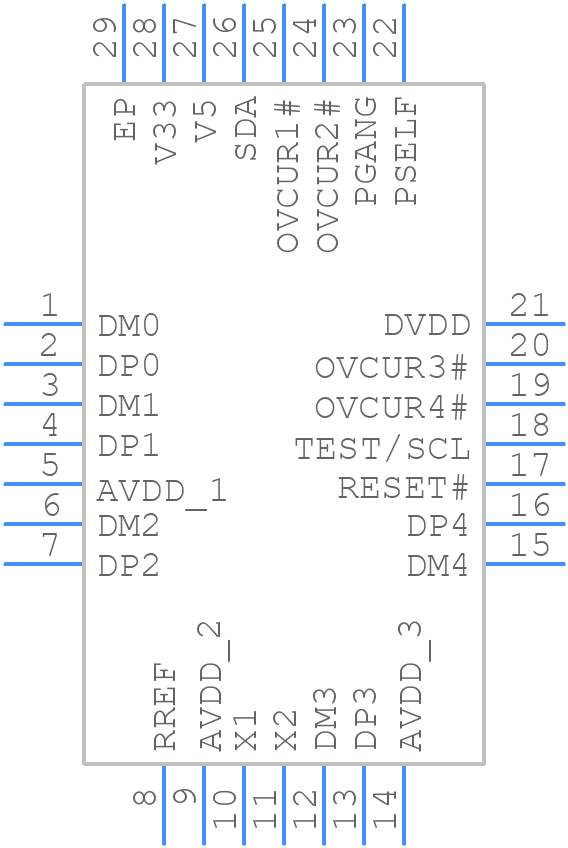

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for GL852GT-MNGXX
- Part Number GL852GT-MNGXX
- Manufacturer Genesys
- Pin Count 29
- Part Category Diode ESD (Uni-directional)
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - GL850G 28 Pin QFN_2021
- Pinout / Pin List Click Here (Member Only)
Trust Checks
System Verified
GL852GT-MNGXX Overview
Use the download button to access the GL852GT-MNGXX schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like GL852,
or try a keyword search, such as Bus Controllers
