GMX-SMT2-S-1010 - Kycon

Description: FL/SMT M/DJK L/PROF RT<10P10C SH

Download GMX-SMT2-S-1010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

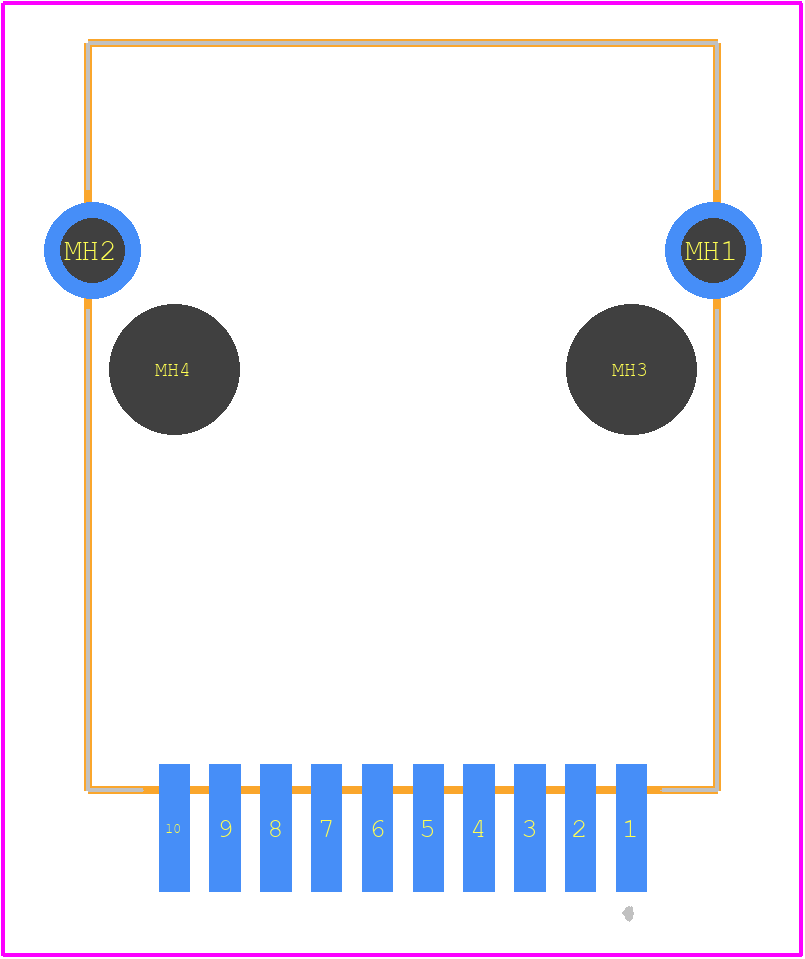

GMX-SMT2-S-1010 - Kycon PCB footprint - Other - Other - GMX-SMT2-S-1010-3
click to zoom
3D Models
GMX-SMT2-S-1010 - Kycon  - 3D model - Other - GMX-SMT2-S-1010-3
click to zoom

GMX-SMT2-S-1010 Details

  • Manufacturer Part Number:

    GMX-SMT2-S-1010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Kycon Inc

  • Risk Rank:

    6.58

  • YTEOL:

    7.3

  • Additional Feature:

    LOW PROFILE, SHIELDED

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.463 inch

  • Body Depth:

    0.734 inch

  • Body Length:

    0.62 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Durability:

    1000 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    CSA, UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0
