Part Image

GP2S+ - Mini-Circuits

Description: Power Splitter/Combiner

Download GP2S+ Model

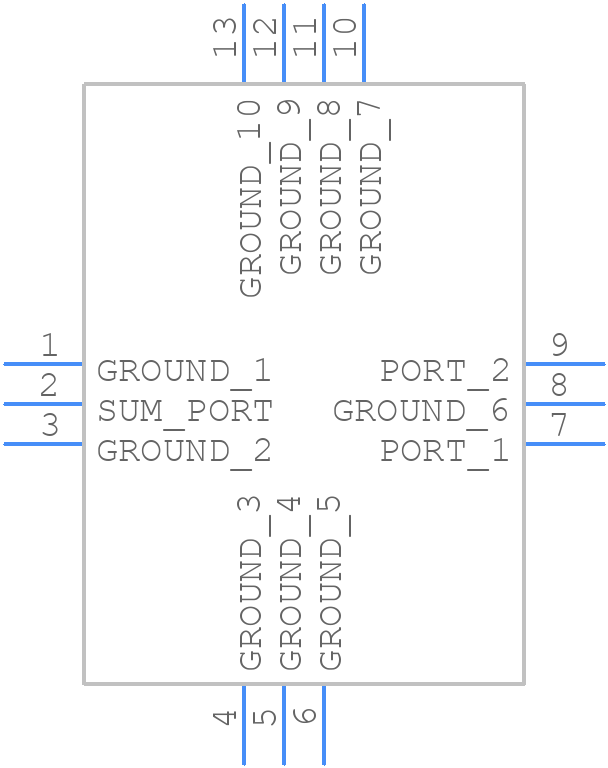

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
GP2S+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - GP2S+
click to zoom
3D Models
GP2S+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - GP2S+
click to zoom

GP2S+ Details

  • Manufacturer Part Number:

    GP2S+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Additional Feature:

    ISOLATION-MIN (DB):17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.4 dB

  • Isolation-Min:

    17 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    2100 MHz

  • Operating Frequency-Min:

    800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.2

GP2S+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the GP2S+. A solid ground plane, short leads, and a low-inductance path to the ground are essential. The datasheet provides some guidance, but it's recommended to consult with a PCB design expert or Mini-Circuits' application notes for more detailed guidance.
  • The choice of termination resistors depends on the specific application and the impedance of the transmission line. A good starting point is to use the recommended values in the datasheet, but you may need to adjust them based on your specific use case. Consult with a signal integrity expert or Mini-Circuits' application notes for more guidance.
  • While the datasheet specifies a maximum frequency of 2 GHz, the GP2S+ can operate at higher frequencies with some degradation in performance. However, it's essential to consult with Mini-Circuits' application engineers to determine the suitability of the GP2S+ for your specific high-frequency application.
  • The GP2S+ can generate significant heat, especially at high frequencies. Ensure good airflow around the device, and consider using a heat sink or thermal management system to keep the temperature within the recommended operating range.
  • The GP2S+ is designed for commercial applications, but it can be used in high-reliability or high-temperature applications with some precautions. Consult with Mini-Circuits' application engineers to determine the suitability of the GP2S+ for your specific application and to discuss any necessary screening or testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GP2S+ Overview

Use the download button to access the GP2S+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
