GP2S1+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download GP2S1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

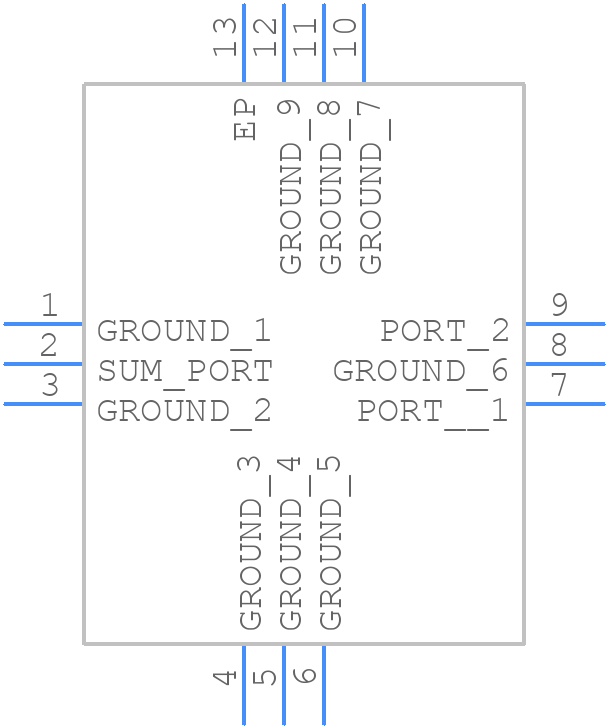

GP2S1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
GP2S1+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
click to zoom
3D Models
GP2S1+ - Mini-Circuits - 3D model - Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
click to zoom

GP2S1+ Details

  • Manufacturer Part Number:

    GP2S1+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Additional Feature:

    ISOLATION-MIN (DB):9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Isolation-Min:

    9 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.3

GP2S1+ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Mount the device on a heat sink or a metal core PCB to dissipate heat. Ensure good airflow around the device and avoid blocking the airflow with nearby components.
  • The maximum input power is +20 dBm. Exceeding this may cause damage to the device or affect its performance.
  • Yes, but ensure that the switching frequency is below 100 kHz to avoid self-oscillation. Also, add a series resistor and a shunt capacitor to the output to prevent oscillations.
  • Use a voltage regulator to maintain a stable bias voltage. Adjust the bias voltage to optimize the gain and linearity of the amplifier. Typically, a bias voltage of 5-6 V is recommended.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GP2S1+ Overview

Use the download button to access the GP2S1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GP2S1, or try a keyword search, such as RF/Microwave Splitter/Combiners
