GP2Y+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download GP2Y+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

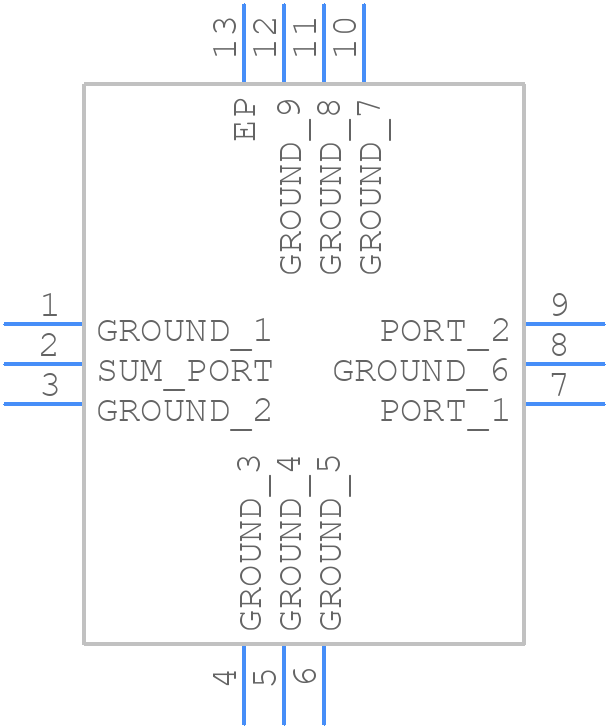

GP2Y+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
GP2Y+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225
click to zoom
3D Models
GP2Y+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ1225
click to zoom

GP2Y+ Details

  • Manufacturer Part Number:

    GP2Y+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Additional Feature:

    ISOLATION-MIN (DB):17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.5 dB

  • Isolation-Min:

    17 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    3300 MHz

  • Operating Frequency-Min:

    1600 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.2

GP2Y+ Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VEE. This ensures that the internal voltage regulators are powered up correctly.
  • The output voltage of the GP2Y+ is a analog voltage that varies from 0 to VCC. It's recommended to use a voltage follower or a buffer amplifier to condition the output signal before feeding it into an ADC or other circuitry.
  • The maximum distance the GP2Y+ can detect objects depends on the object's size, shape, and reflectivity. Typically, it can detect objects up to 150 cm (59 inches) away, but this can vary depending on the specific application.
  • The sensitivity of the GP2Y+ can be adjusted by changing the value of the R1 resistor connected to the VS pin. A lower value of R1 increases the sensitivity, while a higher value decreases it.
  • Yes, the GP2Y+ can be used with a microcontroller that has a 3.3V supply. However, the output voltage of the GP2Y+ will be limited to 3.3V, and the maximum detection distance may be reduced.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GP2Y+ Overview

Use the download button to access the GP2Y+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as RF/Microwave Splitter/Combiners
