GQA2W004A280V-007-R footprint, schematic symbol and 3D model by TDK Lambda

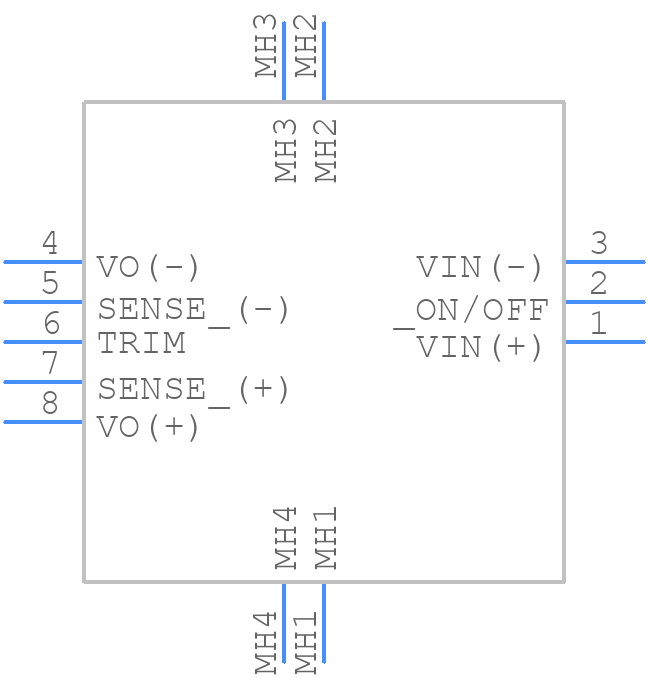

Symbol

click to zoom

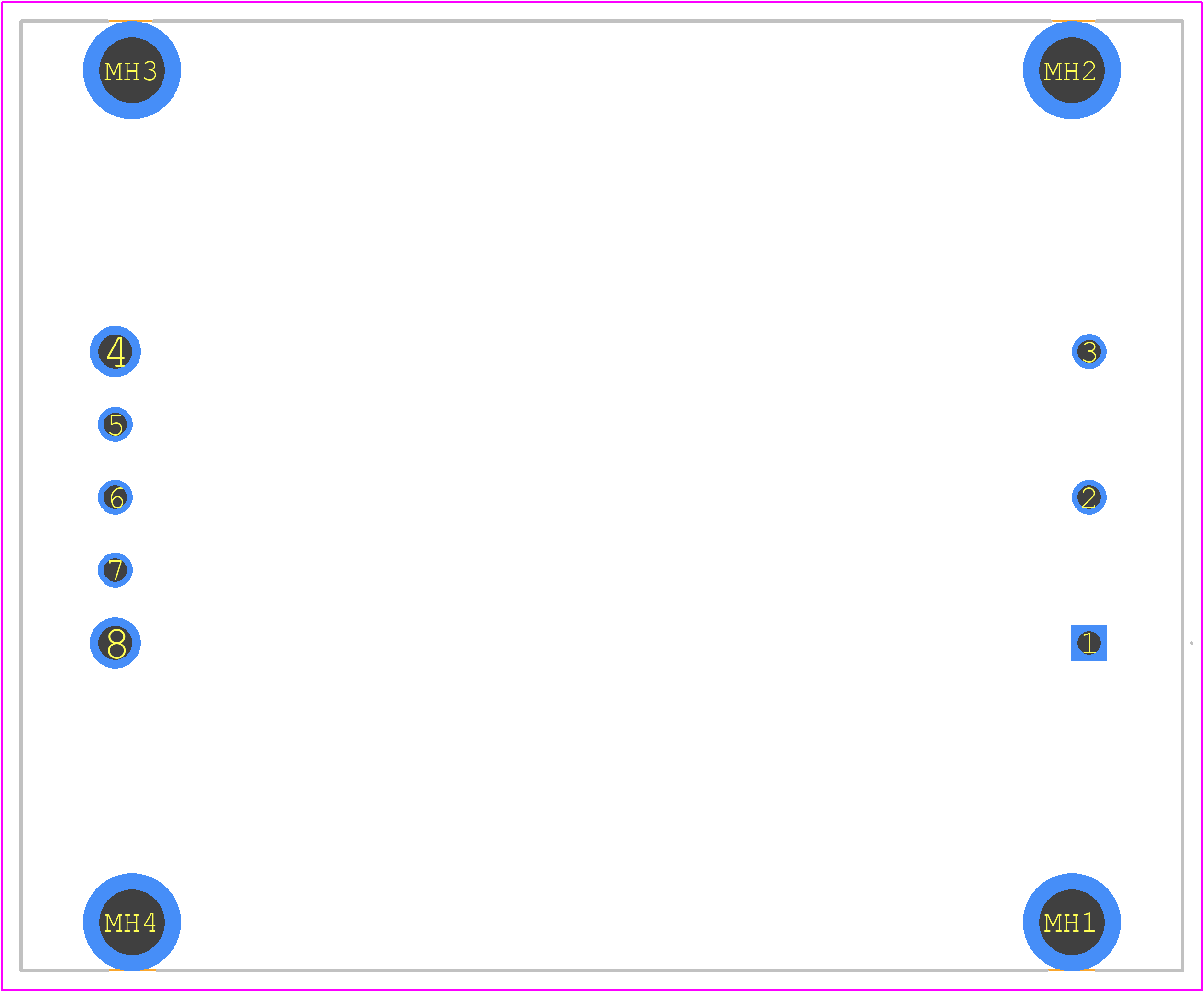

PCB Footprints

GQA2W004A280V-007-R - TDK Lambda PCB footprint - Other - Other - GQA2W004A280V-007-R-1

click to zoom

3D Models

GQA2W004A280V-007-R - TDK Lambda - 3D model - Other - GQA2W004A280V-007-R-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GQA2W004A280V-007-R
Part Number GQA2W004A280V-007-R
Manufacturer TDK Lambda
Pin Count 12
Part Category Power Supply
Package Category Other
Footprint Name Other - GQA2W004A280V-007-R-1
Released Date Apr 1, 2022
Last Modified Date Aug 1, 2024 12:55 PM UTC
Pinout / Pin List Click Here (Member Only)

GQA2W004A280V-007-R Details

Manufacturer Part Number:
GQA2W004A280V-007-R
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
Manufacturer:
TDK-Lambda Corporation
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
JESD-30 Code:
R-XDFM-X8
Load Regulation-Max:
0.03%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
30.8 V
Output Voltage-Min:
25.2 V
Output Voltage-Nom:
28 V
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
UNSPECIFIED
Terminal Position:
DUAL
Total Power Output-Max:
120 W
Trim/Adjustable Output:
YES

GQA2W004A280V-007-R Frequently Asked Questions (FAQs)

The maximum operating temperature range for the GQA2W004A280V-007-R is -40°C to +85°C, with derating above 60°C.
Yes, the GQA2W004A280V-007-R is designed to withstand high-vibration environments, with a vibration test specification of 10-2000Hz, 2G acceleration.
Yes, the GQA2W004A280V-007-R is designed to operate in humid environments, with a humidity rating of 95% RH at 40°C.
The MTBF of the GQA2W004A280V-007-R is approximately 1.5 million hours at 25°C, calculated according to MIL-HDBK-217F.
Yes, the GQA2W004A280V-007-R is designed to operate up to an altitude of 10,000 feet (3,048 meters) without derating.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

GQA2W004A280V-007-R Overview

Use the download button to access the GQA2W004A280V-007-R schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like GQA2W, or try a keyword search, such as Power Supply Modules
